Series:62AG-VG
62VG22-L5-040C
- technical Data
- Description
- drawings
- downloads
- Where To Buy
Angle of Throw - Deck A
22.5
Angle of Throw - Deck B
N/A
Behind Panel (inch)
0
Electrical Rating
30 mA
Nominal Rotational Torque (in oz)
2
Number of Decks
1
Pushbutton
Yes
Pushbutton Life (cycles)
1M
Rotational Life (cycles)
1M
Rotational Positions - Deck A
16
Rotational Positions - Deck B
N/A
Shaft
Zinc Diecast
Shaft Diameter - Deck A (in)
0.25
Shaft Diameter - Deck B (in)2
N/A
Supply Voltage (VDC)
3.3

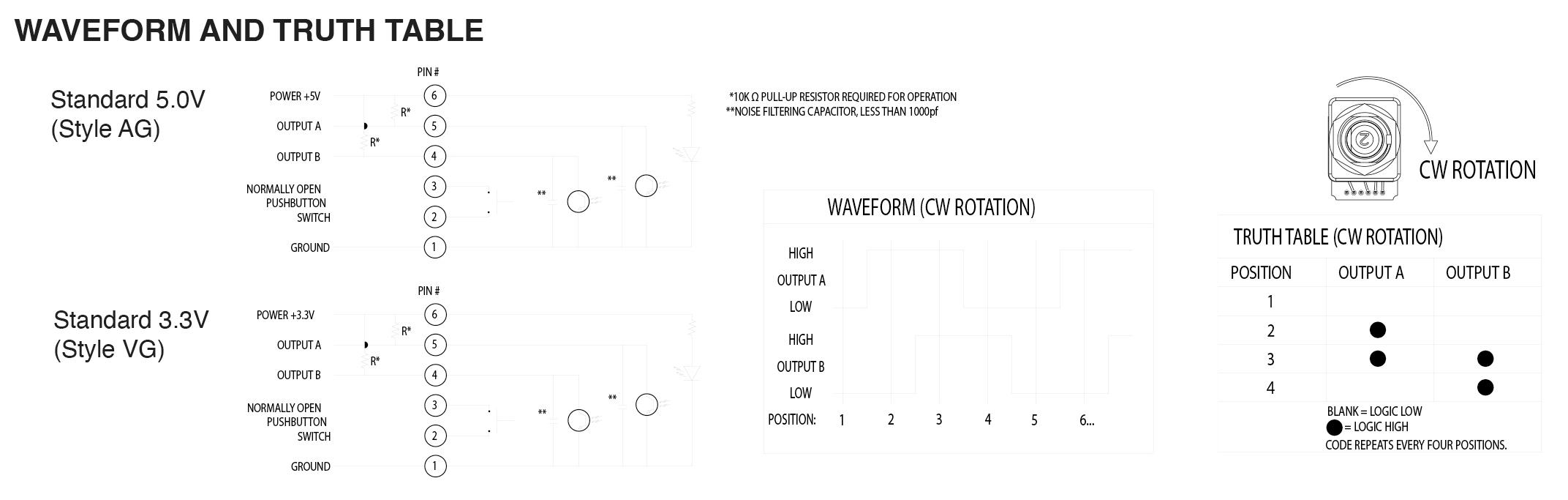

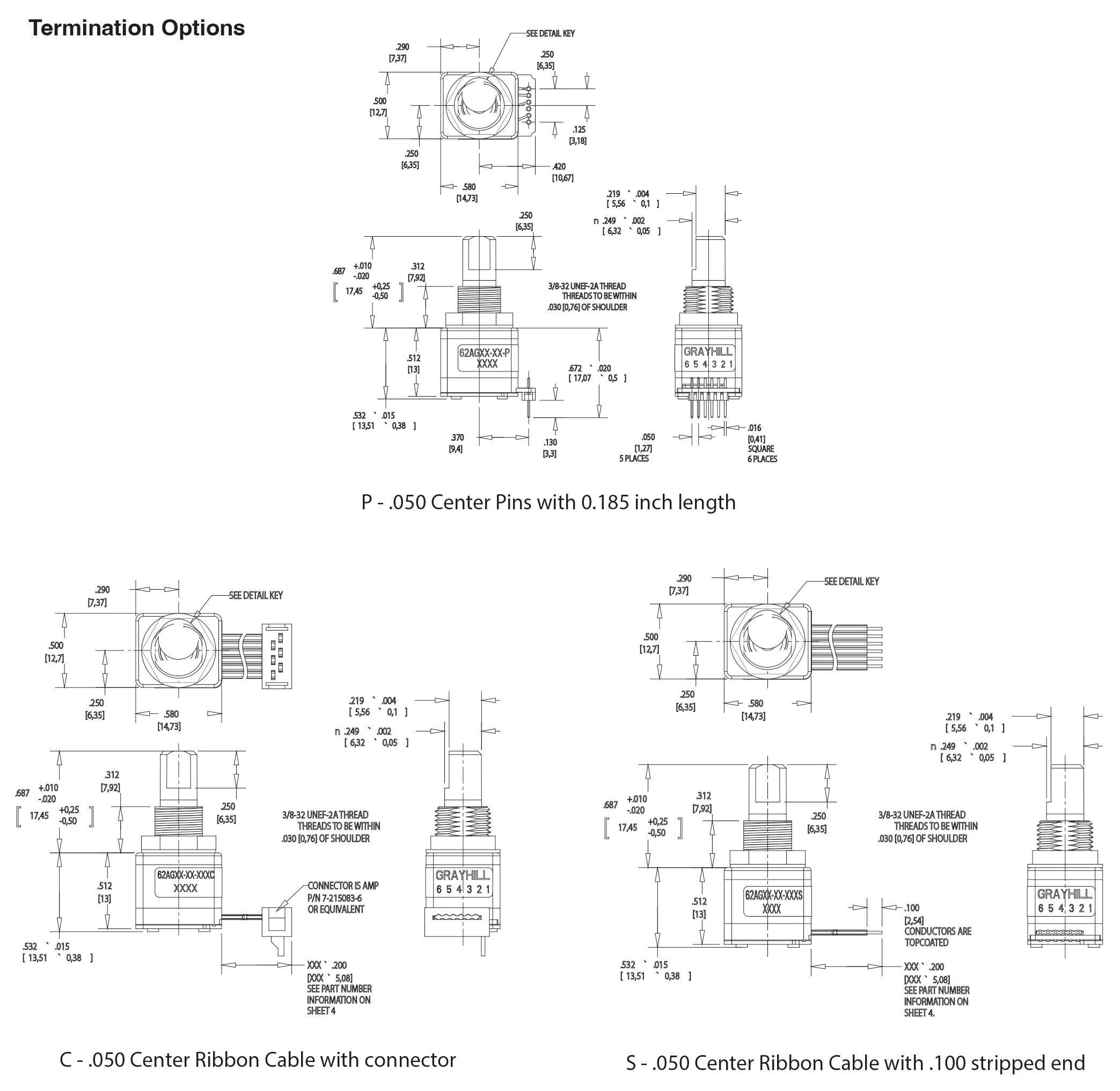

Termination
Cable Connector
- AG = 5Vdc, VG = 3.3Vdc
- Life Rating (cycles): 1,000,000
- Resolution (PPR): 16, 20, 24, 32

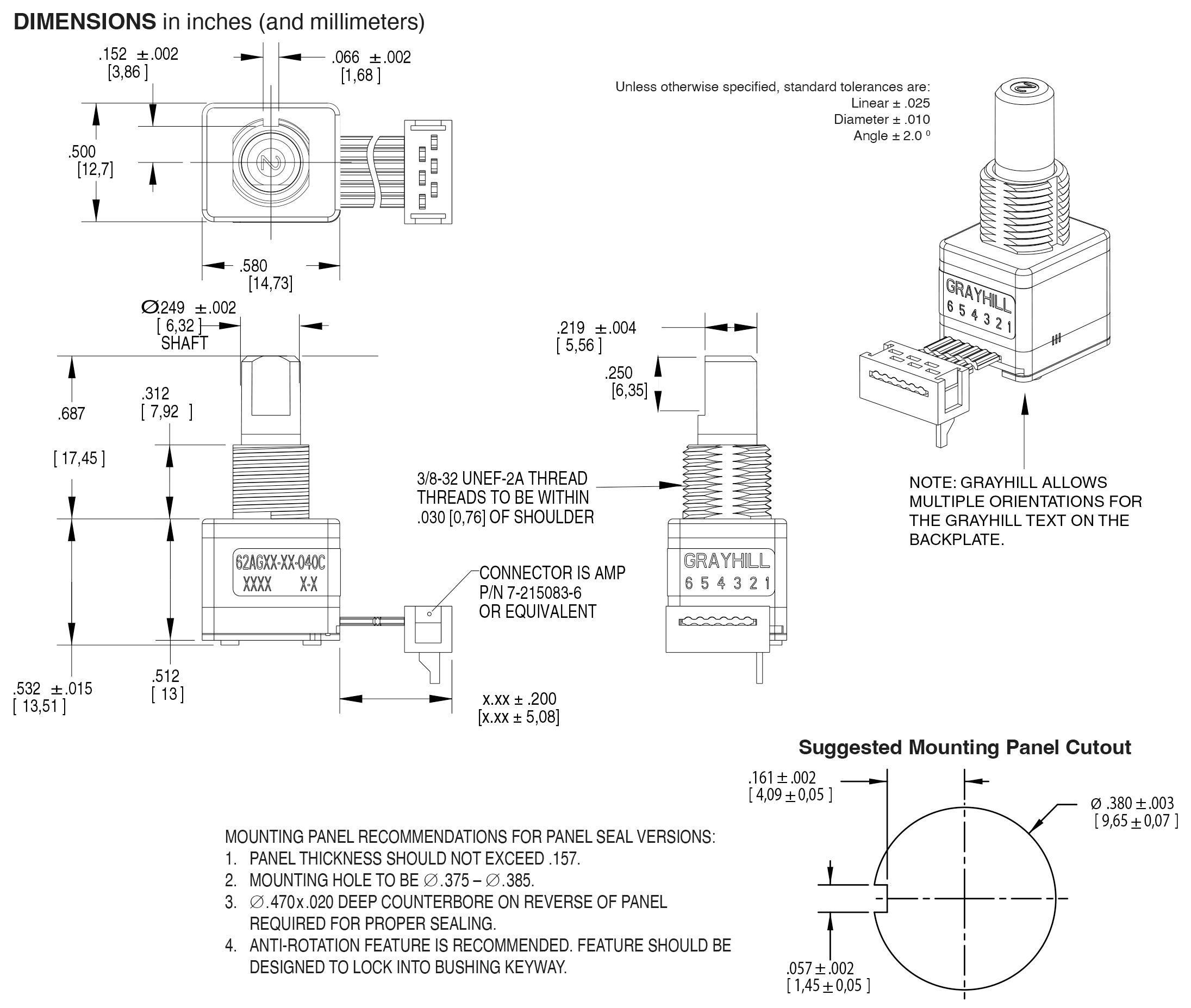

- Body Size inches [mm]: .500 x .540 [12,70 x 13,71]
- Depth Behind Panel inch [mm]: .512 [13,00]"
