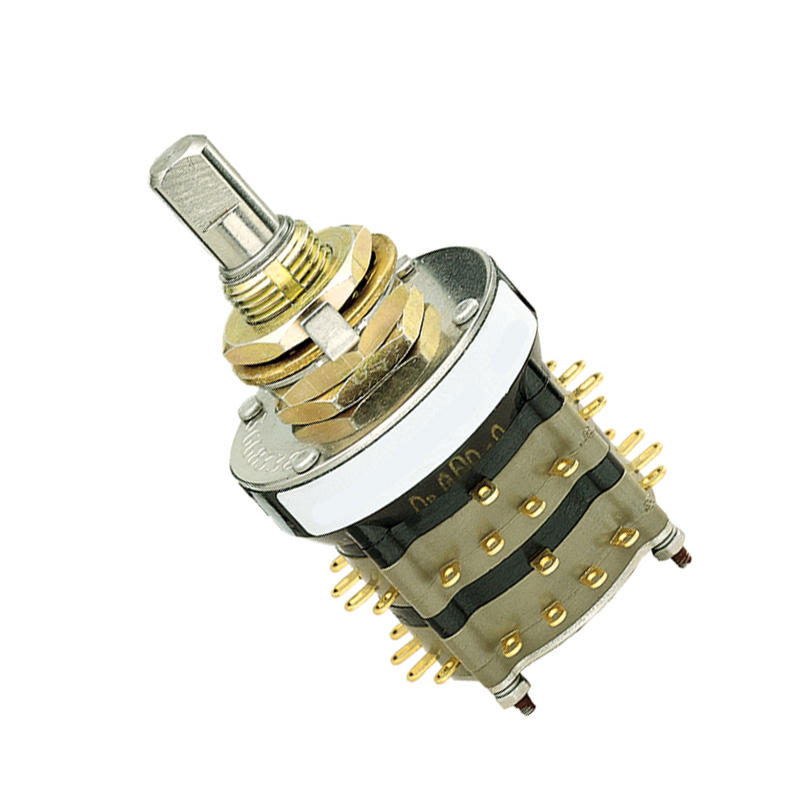

Product Image
Thumbnail 1

53M15-02-2-10N

  • Smallest diameter rotary switch with this number of positions and current capacity
  • Gold-plated contact system compatible with logic circuitry
  • MIL Qualified: MIL-S-3786/36
  • Most positions
  • Poles: up to 12
  • Decks: up to 12
  • Angle of Throw: 15
  • Positions: 24
  • Rating (max): 250 mA
  • Depth Behind Panel: 0.92" to 4.83"
Link copied to clipboard. Request Quote
  • Technical Data
  • Description
  • Drawings
  • Downloads
  • Where to Buy
  • 3D Model AvailableNo
  • Angle of Throw (°)15
  • Behind Panel (in)1.249
  • Contact TypeNon-Shorting
  • Fixed StopFixed Stop
  • Maximum Switch Rating250 mA
  • Mechanical Life Cycles25,000
  • Military RatedYes
  • Number of Decks2
  • Number of Poles2
  • Ordering Part Number53M15-02-2-10N
  • OutputRotary
  • Positions per Pole10
  • Process SealNo
  • RoHS CompliantYes
  • Shaft & Panel SealNo
  • Shaft Diamter (in)0.25
  • Shaft StyleShaft
  • Stop Strength15 lbf in
  • TerminationSolder Lug
  • UL RatedNo
  • Smallest diameter rotary switch with this number of positions and current capacity
  • Gold-plated contact system compatible with logic circuitry
  • MIL Qualified: MIL-S-3786/36
  • Most positions
  • Poles: up to 12
  • Decks: up to 12
  • Angle of Throw: 15
  • Positions: 24
  • Rating (max): 250 mA
  • Depth Behind Panel: 0.92" to 4.83"
