Series: 3D35
This versatile, CAN-based display is ideal for agriculture and construction vehicle applications, including virtual gauges, diagnostic menus, engine monitors, operator input, fault indicators, and service reminders. The optically bonded display and scratch-resistant cover glass reduce reflections, and an anti-glare etching further improves readability in bright sunlight. PC-based configuration tools make application development fast and easy. Add drag-and-drop graphics, bitmaps, and text with a click of a mouse.
Link copied to clipboard.
Request Quote
- Products
- Description

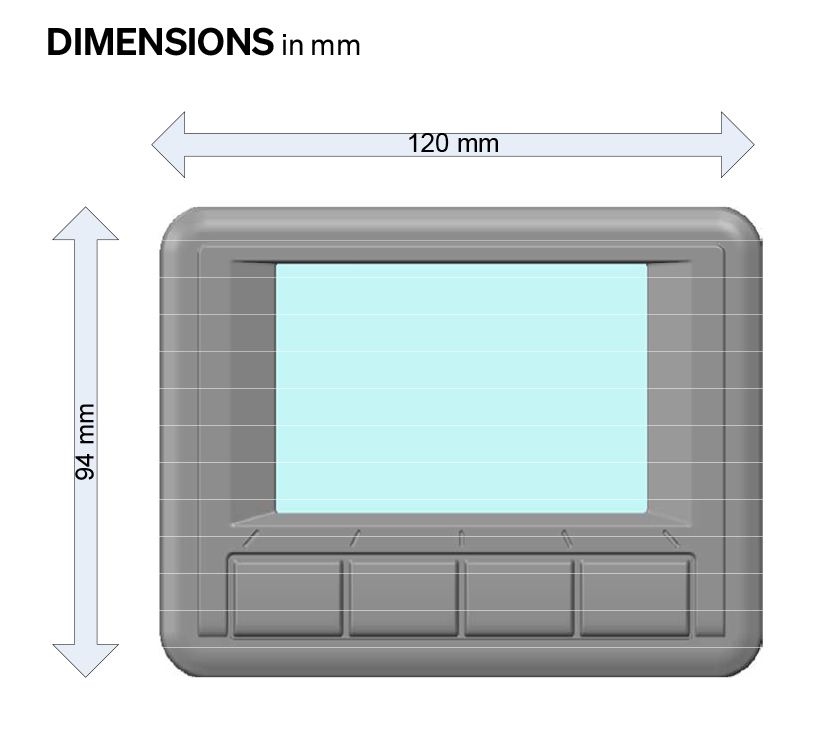

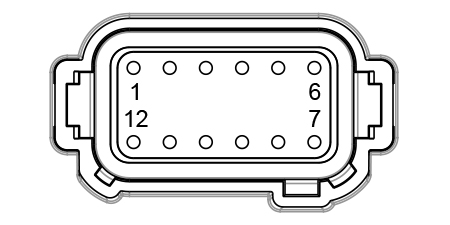

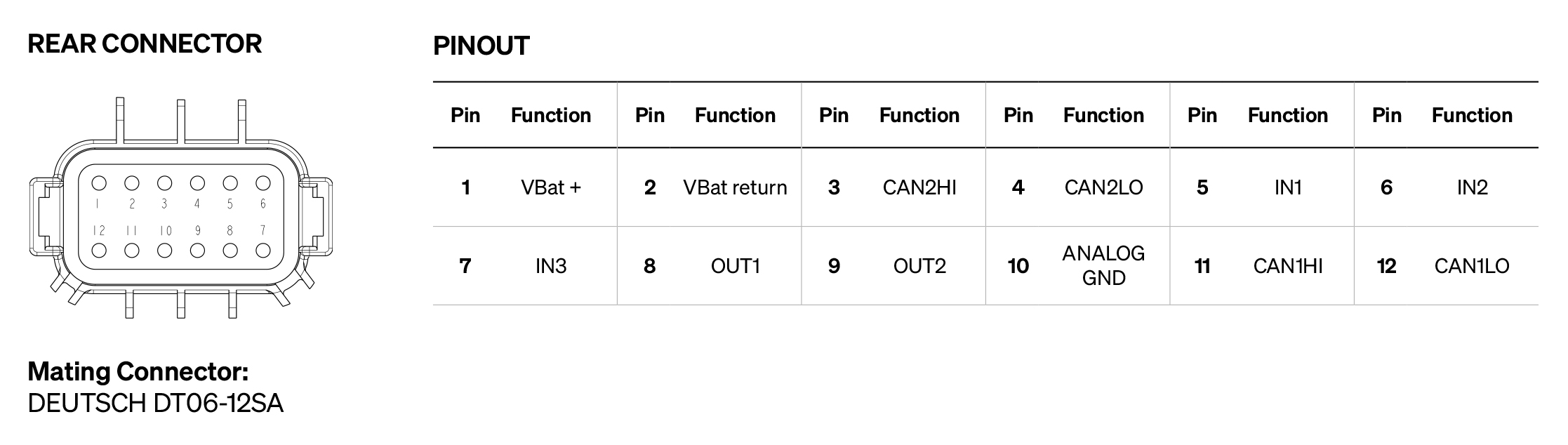

- Drawings
- Downloads
| Product | Display Size | Touchscreen | Operating System | Number of Video Inputs |
|---|---|---|---|---|
|

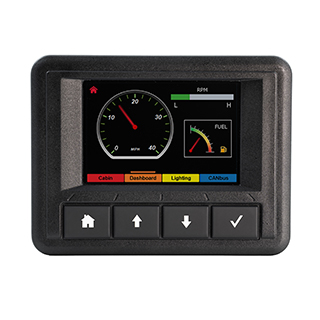

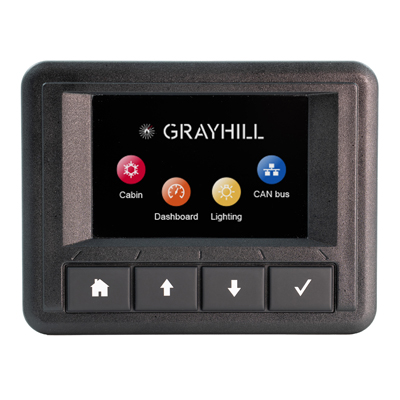

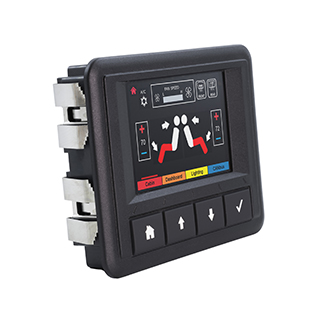

3.5-inch CAN Bus Display
3D35DEV-100
|
No | FreeRTOS | 0 | 3 |
|
3.5-inch CAN Bus Display
3D35XK-100
|
No | FreeRTOS | 0 | 3 |
- Easy application creation and integration with TouchGFX.
- Up to 2 CAN bus ports. (FDCan capable.)
- Powerful processor with sub-second boot time.
- Scratch-resistant/anti-glare cover glass is optically bonded to the LCD display for superior mechanical and visual performance.
- Bright, 1000-nit display is backlit and provides high contrast text and full-color graphics for excellent sunlight readability.
- Convenient flush mounting provides a modern look and feel to seamlessly blend with any vehicle cab design.
- Armrest, A-post, and dashboard mounting.
- Rugged design for extreme environments.
- Functions as an engine monitor or input device.
- Easy application creation and integration with TouchGFX.
- Up to 2 CAN bus ports. (FDCan capable.)
- Powerful processor with sub-second boot time.
- Scratch-resistant/anti-glare cover glass is optically bonded to the LCD display for superior mechanical and visual performance.
- Bright, 1000-nit display is backlit and provides high contrast text and full-color graphics for excellent sunlight readability.
- Convenient flush mounting provides a modern look and feel to seamlessly blend with any vehicle cab design.
- Armrest, A-post, and dashboard mounting.
- Rugged design for extreme environments.
- Functions as an engine monitor or input device.
Products
|
|
3.5-inch CAN Bus Display
3D35DEV-100
Display Size: No Touchscreen: FreeRTOS Operating System: 0 Number of Video Inputs: 3 |
|
|
3.5-inch CAN Bus Display
3D35XK-100
Display Size: No Touchscreen: FreeRTOS Operating System: 0 Number of Video Inputs: 3 |
