Series: 94H
- Thru-Hole & Surface Mount
- Life Rating: 10,000
- Actuation: Rotary

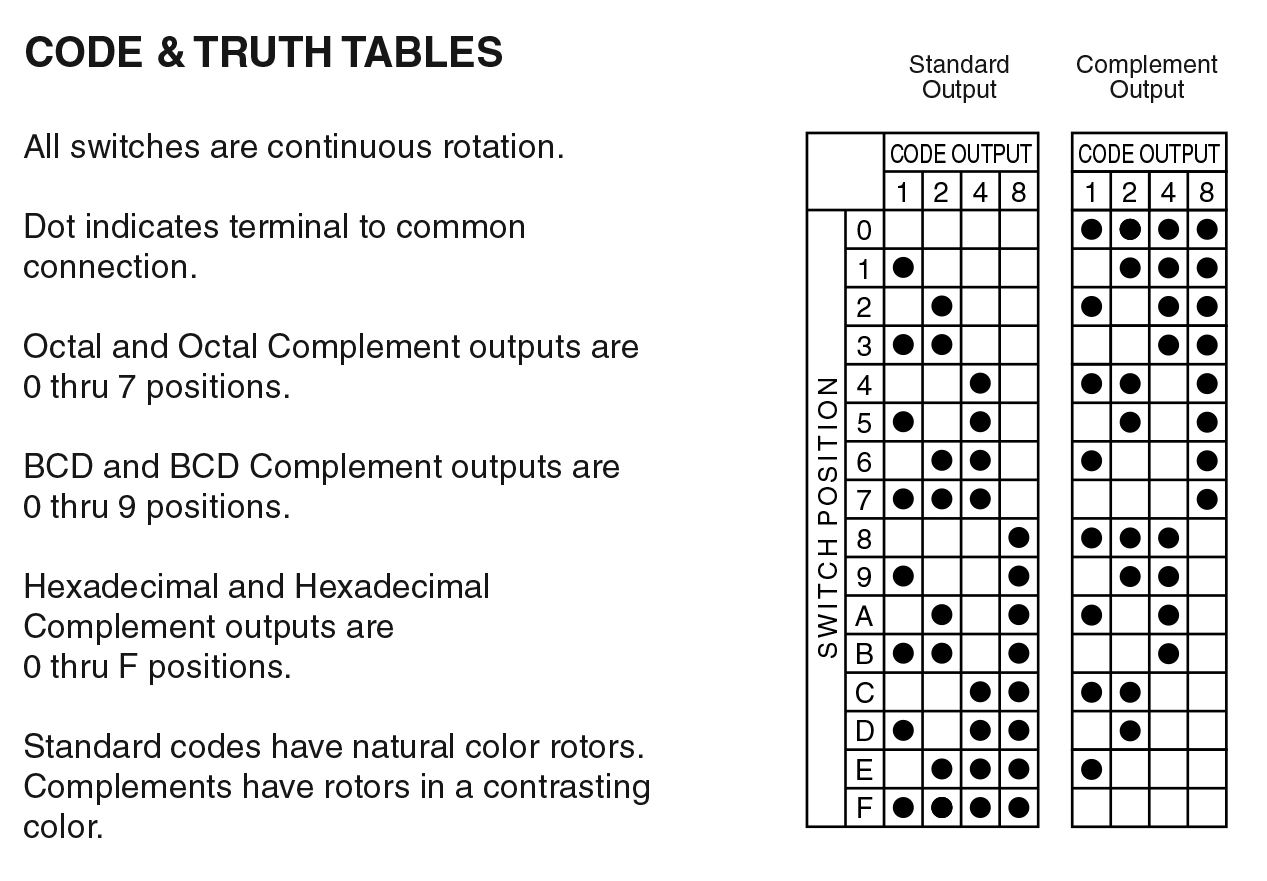

- Circuitry: Octal, BCD & Hexadecimal
Link copied to clipboard.
Request Quote
- Products
- Description

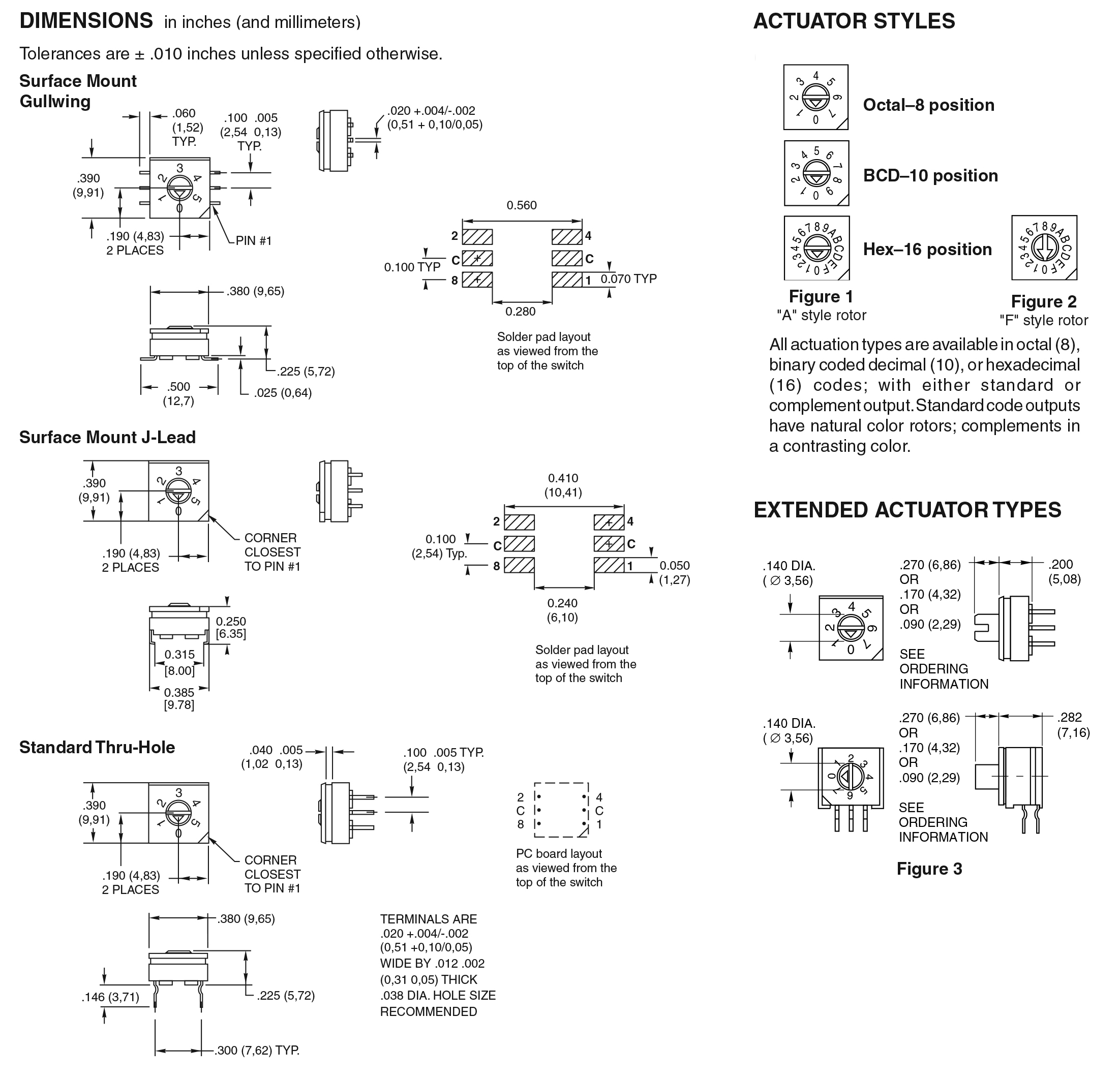

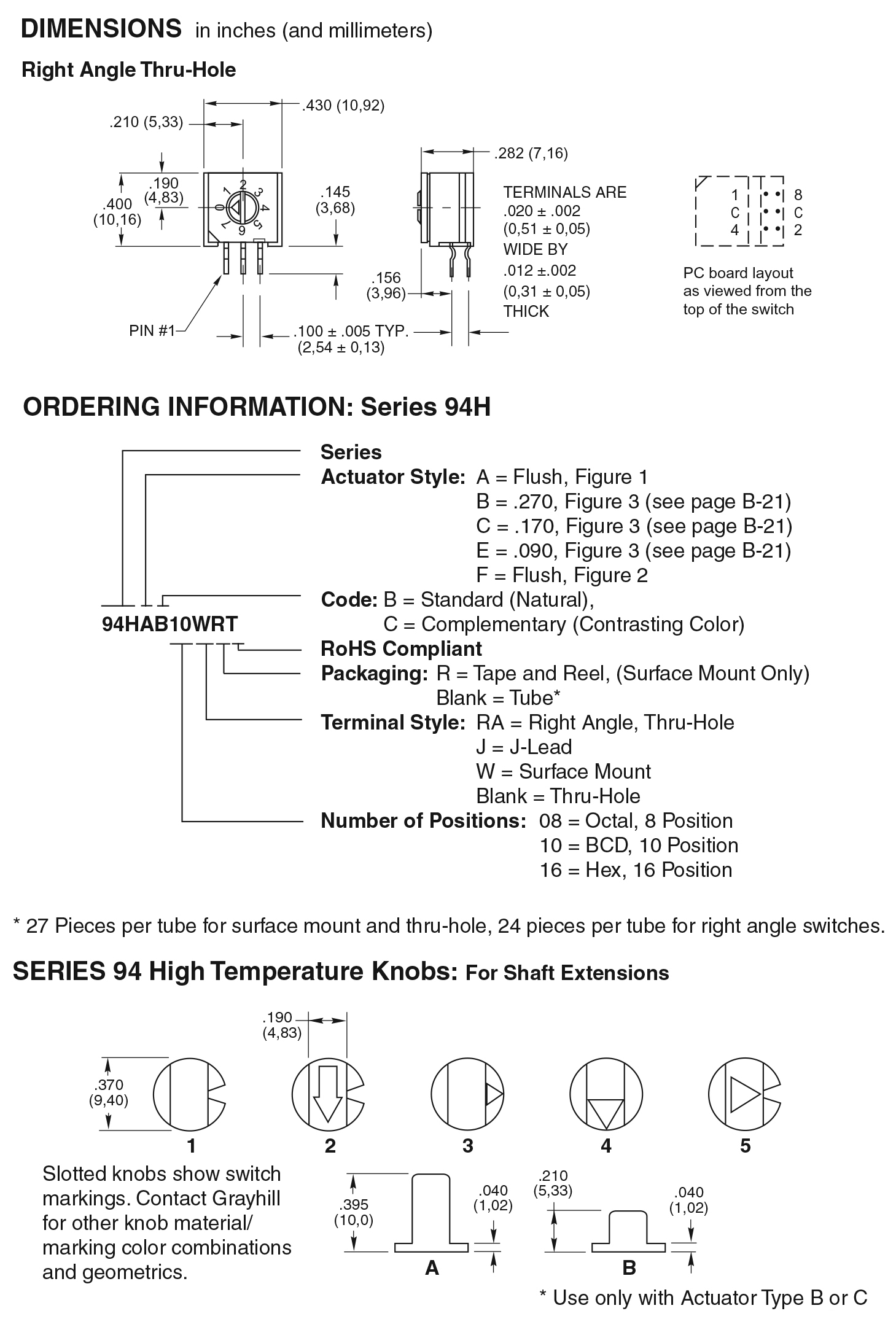

- Drawings
- Downloads
Showing 50 of 126 results
Product | Switch Type | Circuitry | Mounting Configuration | Switch Rating | Stock |
---|---|---|---|---|---|
![]()
Thru-Hole and Surface Mount
94HAB08JRT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB08JT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB08RAT
|
Rotary | Octal | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB08T
|
Rotary | Octal | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB08WRT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB08WT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB10JRT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB10JT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB10RAT
|
Rotary | BCD | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB10T
|
Rotary | BCD | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB10WRT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB10WT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB16JRT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB16JT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB16RAT
|
Rotary | Hexadecimal | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB16T
|
Rotary | Hexadecimal | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB16WRT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAB16WT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC08RAT
|
Rotary | Octal | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC08T
|
Rotary | Octal | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC08WRT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC08WT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC10RAT
|
Rotary | BCD | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC10T
|
Rotary | BCD | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC10WRT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC10WT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC16JRT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC16JT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC16RAT
|
Rotary | Hexadecimal | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC16T
|
Rotary | Hexadecimal | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC16WRT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HAC16WT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB08JT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB08RAT
|
Rotary | Octal | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB08T
|
Rotary | Octal | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB08WRT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB08WT
|
Rotary | Octal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB10JT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB10RAT
|
Rotary | BCD | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB10T
|
Rotary | BCD | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB10WRT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB10WT
|
Rotary | BCD | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB16JT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB16RAT
|
Rotary | Hexadecimal | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB16T
|
Rotary | Hexadecimal | Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB16WRT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBB16WT
|
Rotary | Hexadecimal | Surface Mount | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBC08RAT
|
Rotary | Octal | Right Angle Thru-Hole | 30 mA at 30 VDC | |
![]()
Thru-Hole and Surface Mount
94HBC08T
|
Rotary | Octal | Thru-Hole | 30 mA at 30 VDC |
Showing 50 of 126 results
- Thru-Hole & Surface Mount
- Life Rating: 10,000
- Actuation: Rotary
- Circuitry: Octal, BCD & Hexadecimal
- Thru-Hole & Surface Mount
- Life Rating: 10,000
- Actuation: Rotary
- Circuitry: Octal, BCD & Hexadecimal
Products
Showing 50 of 126 results
![]() |
Thru-Hole and Surface Mount
94HAB08JRT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB08JT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB08RAT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB08T
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB08WRT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB08WT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB10JRT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB10JT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB10RAT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB10T
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB10WRT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB10WT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB16JRT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB16JT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB16RAT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB16T
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB16WRT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAB16WT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC08RAT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC08T
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC08WRT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC08WT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC10RAT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC10T
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC10WRT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC10WT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC16JRT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC16JT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC16RAT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC16T
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC16WRT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HAC16WT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB08JT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB08RAT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB08T
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB08WRT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB08WT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB10JT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB10RAT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB10T
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB10WRT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB10WT
Switch Type: Rotary Circuitry: BCD Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB16JT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB16RAT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB16T
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB16WRT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBB16WT
Switch Type: Rotary Circuitry: Hexadecimal Mounting Configuration: Surface Mount Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBC08RAT
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Right Angle Thru-Hole Switch Rating: 30 mA at 30 VDC |
![]() |
Thru-Hole and Surface Mount
94HBC08T
Switch Type: Rotary Circuitry: Octal Mounting Configuration: Thru-Hole Switch Rating: 30 mA at 30 VDC |
Showing 50 of 126 results
