Series: 76HP
- Piano DIP
- Life Rating: 2,000
- Actuation: Side Toggle

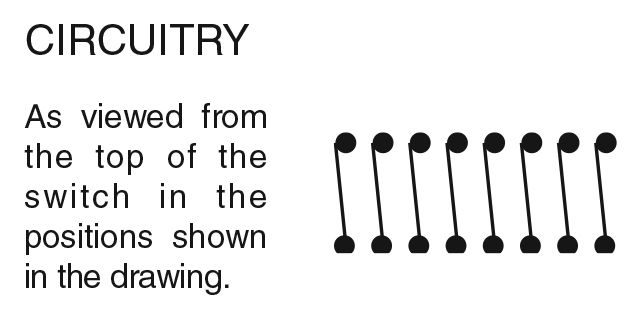

- Circuitry: SPST
Link copied to clipboard.
Request Quote
- Products
- Description

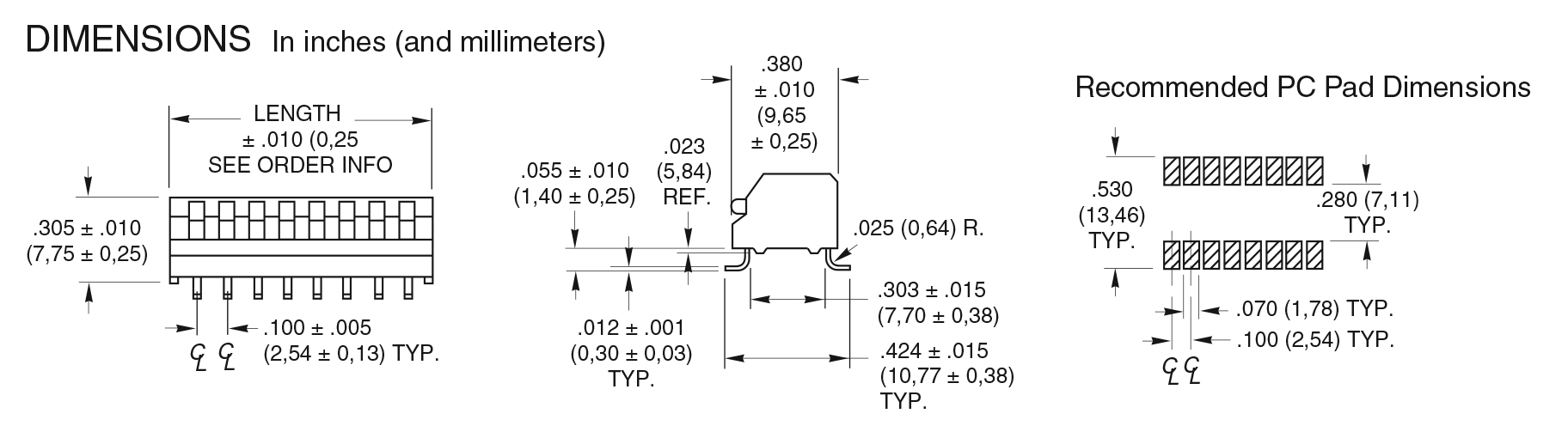

- Drawings
- Downloads
| Product | Switch Type | Circuitry | Mounting Configuration | Switch Rating |
|---|---|---|---|---|
|
Surface Mount DIP Switches
76HPSB02GWRT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB02GWT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB04GWRT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB04GWT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB04T
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB06GWRT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB06GWT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB06T
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB08GWRT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB08GWT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB08T
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB10GWRT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
|
Surface Mount DIP Switches
76HPSB10GWT
|
Piano-DIP | SPST | Surface Mount | 50 mA at 30 VDC |
- Piano DIP
- Life Rating: 2,000
- Actuation: Side Toggle
- Circuitry: SPST
- Piano DIP
- Life Rating: 2,000
- Actuation: Side Toggle
- Circuitry: SPST
Products
|
|
Surface Mount DIP Switches
76HPSB02GWRT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB02GWT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB04GWRT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB04GWT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB04T
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB06GWRT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB06GWT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB06T
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB08GWRT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB08GWT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB08T
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB10GWRT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
|
|
Surface Mount DIP Switches
76HPSB10GWT
Switch Type: Piano-DIP Circuitry: SPST Mounting Configuration: Surface Mount Switch Rating: 50 mA at 30 VDC |
