Back to Series 10-4000 Link copied to clipboard.

10-100

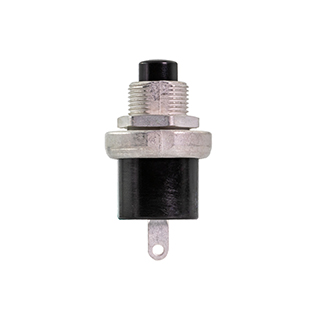

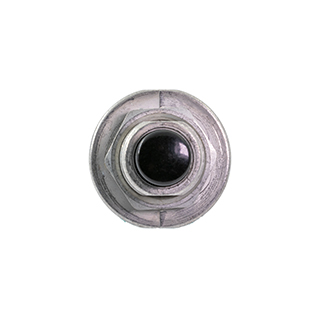

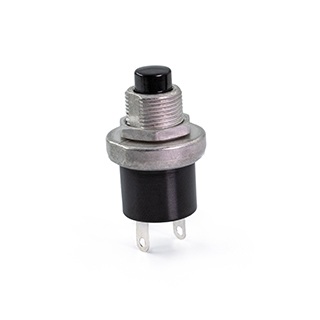

Grayhill’s 10-4000 Pushbutton switches with momentary contact are a reliable, durable solution for many applications. Our pushbuttons feature various contact mechanisms, circuitry, mounting, and termination options, making it easy to find a model that suits your needs.  Typical applications for our pushbutton switches include security systems, industrial manufacturing equipment, casino gaming, audio/video equipment, avionics, fitness equipment, and test and measurement equipment. If you require customization, we can provide tailored options. This includes adjusting the actuation force and travel distance and offering specific termination and cabling solutions. Our flexibility allows you to create the ideal pushbutton switch for your use case. Additionally, we offer a range of customizations such as custom caps and legends, unique detents (clicks) and tactile feedback, multiple termination and cabling options, custom electronics, and integration into a Grayhill custom front panel assembly. With these options, you can ensure that your pushbutton switches meet your exact specifications and requirements.

Link copied to clipboard. Request Quote
  • Technical Data
  • Description
  • Drawings
  • Downloads
  • Where to Buy
  • 3D Model AvailableYes
  • BacklightNo
  • CircuitrySPST - N.O.
  • Contact FunctionBreak before Make
  • Contact TypeWiping Contacts with Overtravel
  • Cycles RankF
  • Max Switch Rating1 Amp
  • Mechanical Life Cycles100000
  • Mounting ConfigurationPanel
  • Operating Force35 oz
  • Rating RankF
  • RoHS CompliantYes
  • SealedNo
  • UL RatedNo
  • Momentary, Positive Feel, UL Rated Versions
  • Electrical Rating: 3 Amps at 115 Vac
  • Circuitry: SPST
  • Termination: Solder Lug
  • Behind Panel Depth Inches [mm]:0.688 [16,97]
  • Life Rating (cycles): up to 100,000
DistributorQuantityRegionLocation
Mouser Electronics Inc.98North AmericaUnited States
DigiKey23North AmericaUnited States
Master Electronics111North AmericaUnited States
Onlinecomponents.com114North AmericaUnited States
RS36North AmericaUnited States
Sager Electronics699North AmericaUnited States
  • 3D Model AvailableYes
  • BacklightNo
  • CircuitrySPST - N.O.
  • Contact FunctionBreak before Make
  • Contact TypeWiping Contacts with Overtravel
  • Cycles RankF
  • Max Switch Rating1 Amp
  • Mechanical Life Cycles100000
  • Mounting ConfigurationPanel
  • Operating Force35 oz
  • Rating RankF
  • RoHS CompliantYes
  • SealedNo
  • UL RatedNo
  • Momentary, Positive Feel, UL Rated Versions
  • Electrical Rating: 3 Amps at 115 Vac
  • Circuitry: SPST
  • Termination: Solder Lug
  • Behind Panel Depth Inches [mm]:0.688 [16,97]
  • Life Rating (cycles): up to 100,000
