Series: 62A-D-V

The 62A-D-V Premium Haptic Rotary Encoder delivers rugged durability, precise haptics, and energy-efficient design in a compact ½-inch package. Built with optical coupling technology for more than one million rotational cycles, these rotary devices provide a premium feel that stays consistent over time, even in harsh environments.

Available in multiple torque profiles, detent options (12, 16, 20, 24, 32, or non-detent), and operating voltages (3.3 V or 5 V), the 62A-D-V Series gives designers the flexibility to balance energy efficiency, tactile feedback, and system requirements. An optional integrated pushbutton enables intuitive “scroll-and-click” operation, combining navigation and selection into one compact control.

Rated for operation from –40 °C to +85 °C and tested to withstand vibration, shock, and humidity, these encoders are ideal for medical devices, military equipment, industrial controls, and vehicle systems where reliability and user experience are paramount.

Key Benefits:

  • Premium haptics: Customizable detent and torque options for precise, rugged feel
  • Long life: Optical design rated for 1M+ rotational cycles and 3M pushbutton actuations
  • Energy options: Standard and low-power versions at 3.3 V or 5 V to suit efficiency needs
  • Durable construction: Sealed options, vibration/shock resistance, and wide temperature range

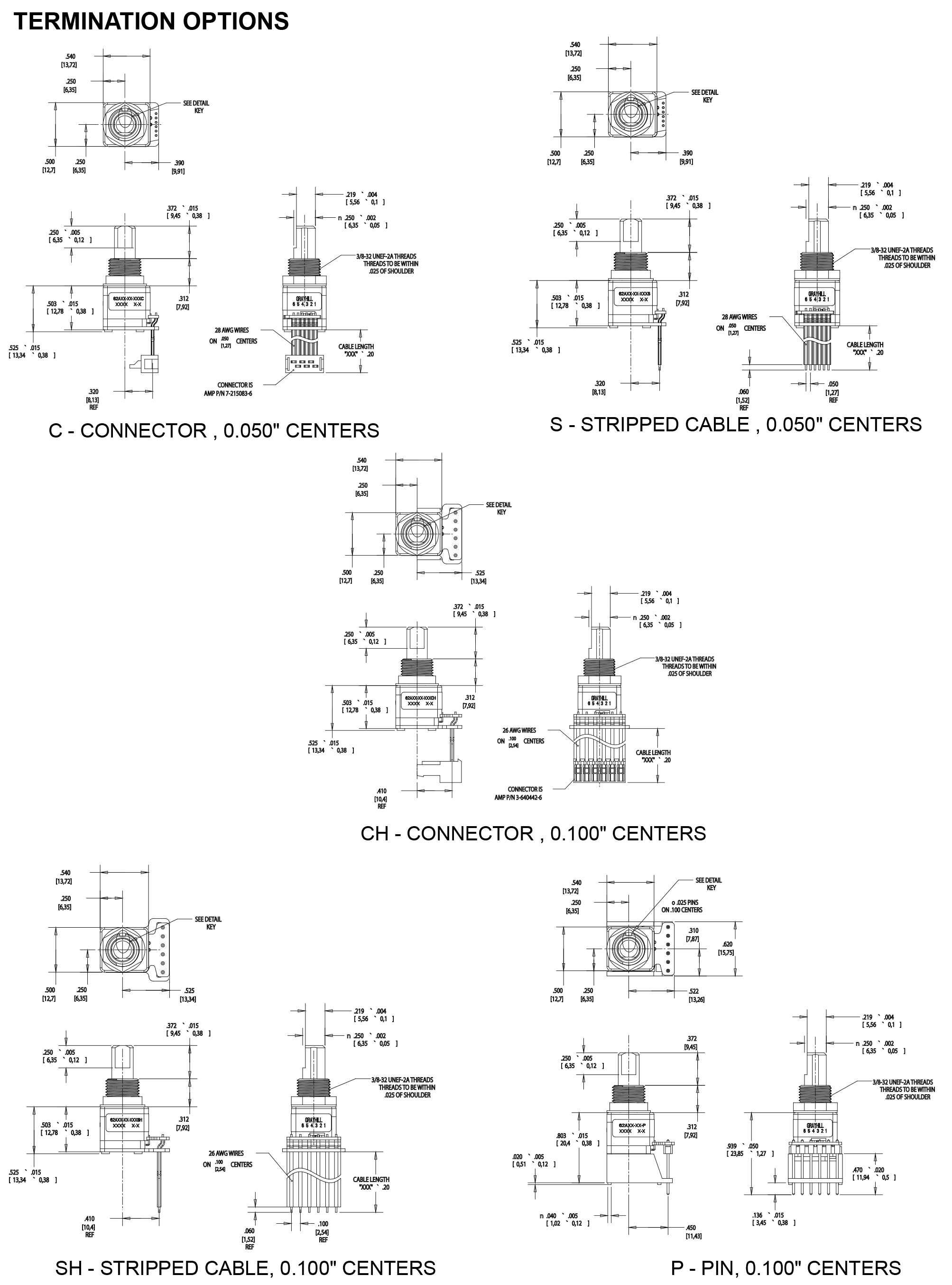

  • Versatile integration: Optional pushbutton and multiple terminations (cable, connector, header)
Link copied to clipboard. Request Quote
  • Products
  • Description

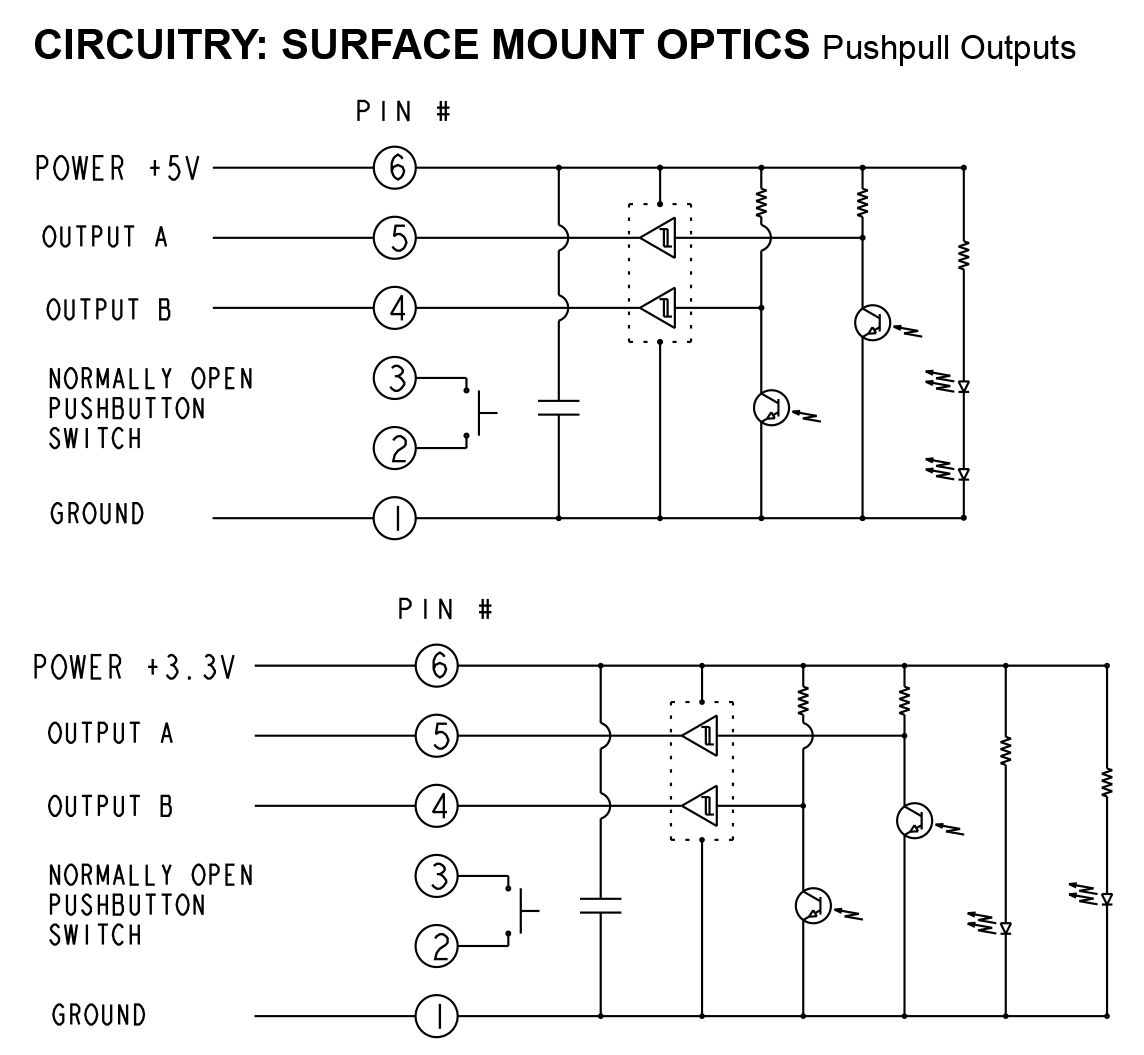

  • Drawings
  • Downloads

Showing 50 of 494 results

Product Output Angle of Throw: Deck A Angle of Throw: Deck B Supply Voltage (VDC) Stock
62A01-01-020C
Premium Haptic Rotary Encoder 62A01-01-020C
Quadrature11.25N/A5
62A01-01-020S
Premium Haptic Rotary Encoder 62A01-01-020S
Quadrature11.25N/A5
62A01-01-020SH
Premium Haptic Rotary Encoder 62A01-01-020SH
Quadrature11.25N/A5
62A01-01-040C
Premium Haptic Rotary Encoder 62A01-01-040C
Quadrature11.25N/A5
62A01-01-040S
Premium Haptic Rotary Encoder 62A01-01-040S
Quadrature11.25N/A5
62A01-01-050CH
Premium Haptic Rotary Encoder 62A01-01-050CH
Quadrature11.25N/A5
62A01-01-050S
Premium Haptic Rotary Encoder 62A01-01-050S
Quadrature11.25N/A5
62A01-01-060C
Premium Haptic Rotary Encoder 62A01-01-060C
Quadrature11.25N/A5
62A01-01-060S
Premium Haptic Rotary Encoder 62A01-01-060S
Quadrature11.25N/A5
62A01-01-060SH
Premium Haptic Rotary Encoder 62A01-01-060SH
Quadrature11.25N/A5
62A01-01-200S
Premium Haptic Rotary Encoder 62A01-01-200S
Quadrature11.25N/A5
62A01-01-P
Premium Haptic Rotary Encoder 62A01-01-P
Quadrature11.25N/A5
62A01-02-020S
Premium Haptic Rotary Encoder 62A01-02-020S
Quadrature11.25N/A5
62A01-02-030C
Premium Haptic Rotary Encoder 62A01-02-030C
Quadrature11.25N/A5
62A01-02-030S
Premium Haptic Rotary Encoder 62A01-02-030S
Quadrature11.25N/A5
62A01-02-040CH
Premium Haptic Rotary Encoder 62A01-02-040CH
Quadrature11.25N/A5
62A01-02-040S
Premium Haptic Rotary Encoder 62A01-02-040S
Quadrature11.25N/A5
62A01-02-040SH
Premium Haptic Rotary Encoder 62A01-02-040SH
Quadrature11.25N/A5
62A01-02-050C
Premium Haptic Rotary Encoder 62A01-02-050C
Quadrature11.25N/A5
62A01-02-050CH
Premium Haptic Rotary Encoder 62A01-02-050CH
Quadrature11.25N/A5
62A01-02-060SH
Premium Haptic Rotary Encoder 62A01-02-060SH
Quadrature11.25N/A5
62A01-02-P
Premium Haptic Rotary Encoder 62A01-02-P
Quadrature11.25N/A5
62A02-01-020S
Premium Haptic Rotary Encoder 62A02-01-020S
Quadrature22.5N/A5
62A02-01-040S
Premium Haptic Rotary Encoder 62A02-01-040S
Quadrature22.5N/A5
62A02-01-P
Premium Haptic Rotary Encoder 62A02-01-P
Quadrature22.5N/A5
62A02-02-060CH
Premium Haptic Rotary Encoder 62A02-02-060CH
Quadrature22.5N/A5
62A02-02-P
Premium Haptic Rotary Encoder 62A02-02-P
Quadrature22.5N/A5
62A03-02-P
Premium Haptic Rotary Encoder 62A03-02-P
Quadrature30N/A5
62A05-01-P
Premium Haptic Rotary Encoder 62A05-01-P
Quadrature15N/A5
62A05-02-030SH
Premium Haptic Rotary Encoder 62A05-02-030SH
Quadrature15N/A5
62A05-02-P
Premium Haptic Rotary Encoder 62A05-02-P
Quadrature15N/A5
62A08-01-030S
Premium Haptic Rotary Encoder 62A08-01-030S
Quadrature18N/A5
62A08-02-030S
Premium Haptic Rotary Encoder 62A08-02-030S
Quadrature18N/A5
62A08-02-120S
Premium Haptic Rotary Encoder 62A08-02-120S
Quadrature18N/A5
62A08-02-P
Premium Haptic Rotary Encoder 62A08-02-P
Quadrature18N/A5
62A11-01-020C
Premium Haptic Rotary Encoder 62A11-01-020C
Quadrature11.25N/A5
62A11-01-020CH
Premium Haptic Rotary Encoder 62A11-01-020CH
Quadrature11.25N/A5
62A11-01-020S
Premium Haptic Rotary Encoder 62A11-01-020S
Quadrature11.25N/A5
62A11-01-020SH
Premium Haptic Rotary Encoder 62A11-01-020SH
Quadrature11.25N/A5
62A11-01-030C
Premium Haptic Rotary Encoder 62A11-01-030C
Quadrature11.25N/A5
62A11-01-030CH
Premium Haptic Rotary Encoder 62A11-01-030CH
Quadrature11.25N/A5
62A11-01-030S
Premium Haptic Rotary Encoder 62A11-01-030S
Quadrature11.25N/A5
62A11-01-035C
Premium Haptic Rotary Encoder 62A11-01-035C
Quadrature11.25N/A5
62A11-01-040C
Premium Haptic Rotary Encoder 62A11-01-040C
Quadrature11.25N/A5
62A11-01-040CH
Premium Haptic Rotary Encoder 62A11-01-040CH
Quadrature11.25N/A5
62A11-01-040S
Premium Haptic Rotary Encoder 62A11-01-040S
Quadrature11.25N/A5
62A11-01-045C
Premium Haptic Rotary Encoder 62A11-01-045C
Quadrature11.25N/A5
62A11-01-050C
Premium Haptic Rotary Encoder 62A11-01-050C
Quadrature11.25N/A5
62A11-01-050S
Premium Haptic Rotary Encoder 62A11-01-050S
Quadrature11.25N/A5

Showing 50 of 494 results

  • D = high detent,  V = 3.3 Vdc
  • Life Rating (cycles): 1,000,000
  • Resolution (PPR): 12, 16, 20, 24, 32

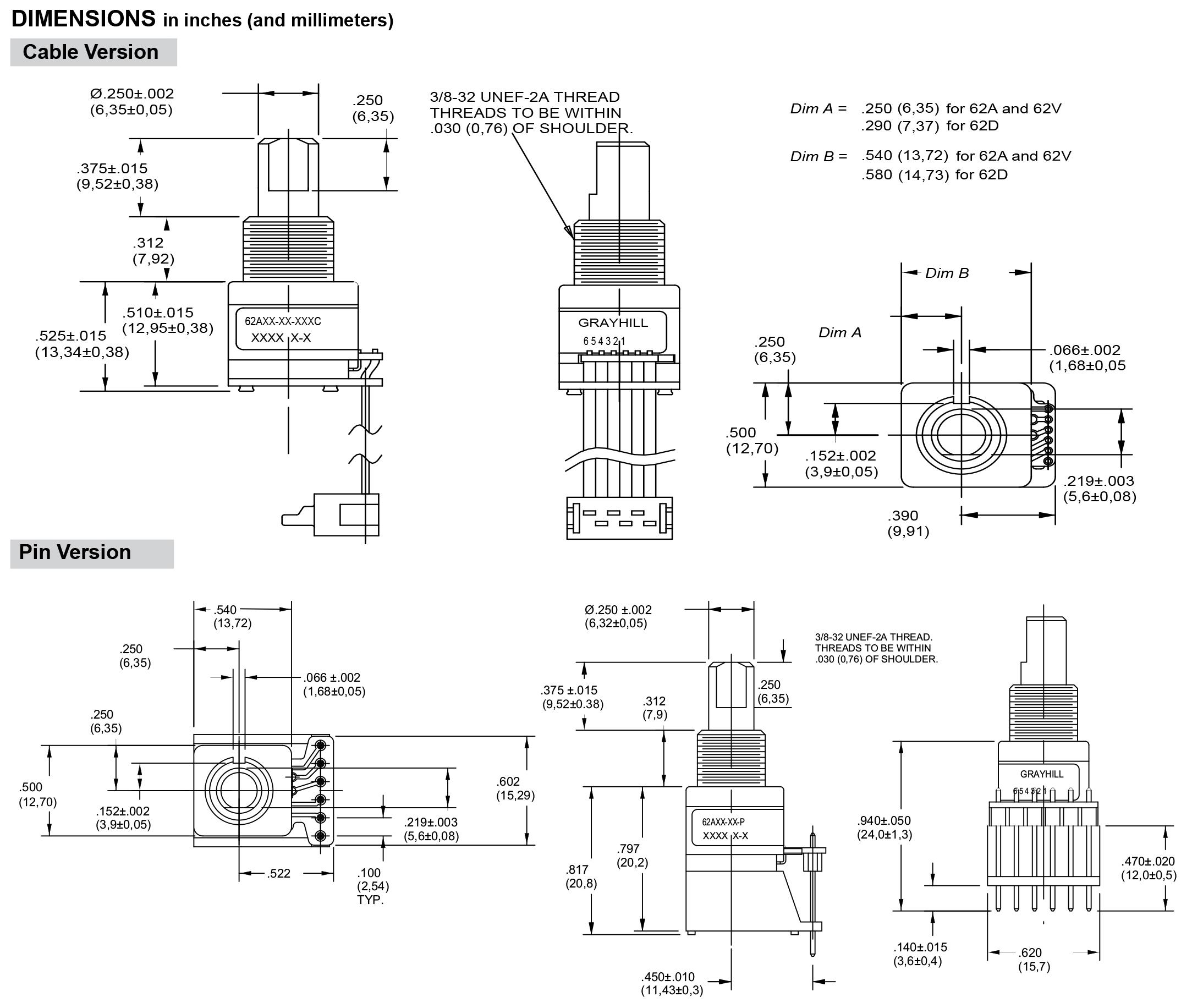

  • Body Size inches [mm]: .500 x.540 [12,70 x 13,71]
  • Depth Behind Panel inch [mm]: .525 [13,33]
  • D = high detent,  V = 3.3 Vdc
  • Life Rating (cycles): 1,000,000
  • Resolution (PPR): 12, 16, 20, 24, 32
  • Body Size inches [mm]: .500 x.540 [12,70 x 13,71]
  • Depth Behind Panel inch [mm]: .525 [13,33]
Products

Showing 50 of 494 results

62A01-01-020C
Premium Haptic Rotary Encoder 62A01-01-020C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-020S
Premium Haptic Rotary Encoder 62A01-01-020S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-020SH
Premium Haptic Rotary Encoder 62A01-01-020SH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-040C
Premium Haptic Rotary Encoder 62A01-01-040C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-040S
Premium Haptic Rotary Encoder 62A01-01-040S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-050CH
Premium Haptic Rotary Encoder 62A01-01-050CH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-050S
Premium Haptic Rotary Encoder 62A01-01-050S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-060C
Premium Haptic Rotary Encoder 62A01-01-060C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-060S
Premium Haptic Rotary Encoder 62A01-01-060S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-060SH
Premium Haptic Rotary Encoder 62A01-01-060SH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-200S
Premium Haptic Rotary Encoder 62A01-01-200S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-01-P
Premium Haptic Rotary Encoder 62A01-01-P
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-020S
Premium Haptic Rotary Encoder 62A01-02-020S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-030C
Premium Haptic Rotary Encoder 62A01-02-030C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-030S
Premium Haptic Rotary Encoder 62A01-02-030S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-040CH
Premium Haptic Rotary Encoder 62A01-02-040CH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-040S
Premium Haptic Rotary Encoder 62A01-02-040S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-040SH
Premium Haptic Rotary Encoder 62A01-02-040SH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-050C
Premium Haptic Rotary Encoder 62A01-02-050C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-050CH
Premium Haptic Rotary Encoder 62A01-02-050CH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-060SH
Premium Haptic Rotary Encoder 62A01-02-060SH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A01-02-P
Premium Haptic Rotary Encoder 62A01-02-P
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A02-01-020S
Premium Haptic Rotary Encoder 62A02-01-020S
Output: Quadrature
Angle of Throw: Deck A: 22.5
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A02-01-040S
Premium Haptic Rotary Encoder 62A02-01-040S
Output: Quadrature
Angle of Throw: Deck A: 22.5
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A02-01-P
Premium Haptic Rotary Encoder 62A02-01-P
Output: Quadrature
Angle of Throw: Deck A: 22.5
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A02-02-060CH
Premium Haptic Rotary Encoder 62A02-02-060CH
Output: Quadrature
Angle of Throw: Deck A: 22.5
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A02-02-P
Premium Haptic Rotary Encoder 62A02-02-P
Output: Quadrature
Angle of Throw: Deck A: 22.5
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A03-02-P
Premium Haptic Rotary Encoder 62A03-02-P
Output: Quadrature
Angle of Throw: Deck A: 30
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A05-01-P
Premium Haptic Rotary Encoder 62A05-01-P
Output: Quadrature
Angle of Throw: Deck A: 15
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A05-02-030SH
Premium Haptic Rotary Encoder 62A05-02-030SH
Output: Quadrature
Angle of Throw: Deck A: 15
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A05-02-P
Premium Haptic Rotary Encoder 62A05-02-P
Output: Quadrature
Angle of Throw: Deck A: 15
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A08-01-030S
Premium Haptic Rotary Encoder 62A08-01-030S
Output: Quadrature
Angle of Throw: Deck A: 18
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A08-02-030S
Premium Haptic Rotary Encoder 62A08-02-030S
Output: Quadrature
Angle of Throw: Deck A: 18
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A08-02-120S
Premium Haptic Rotary Encoder 62A08-02-120S
Output: Quadrature
Angle of Throw: Deck A: 18
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A08-02-P
Premium Haptic Rotary Encoder 62A08-02-P
Output: Quadrature
Angle of Throw: Deck A: 18
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-020C
Premium Haptic Rotary Encoder 62A11-01-020C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-020CH
Premium Haptic Rotary Encoder 62A11-01-020CH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-020S
Premium Haptic Rotary Encoder 62A11-01-020S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-020SH
Premium Haptic Rotary Encoder 62A11-01-020SH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-030C
Premium Haptic Rotary Encoder 62A11-01-030C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-030CH
Premium Haptic Rotary Encoder 62A11-01-030CH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-030S
Premium Haptic Rotary Encoder 62A11-01-030S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-035C
Premium Haptic Rotary Encoder 62A11-01-035C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-040C
Premium Haptic Rotary Encoder 62A11-01-040C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-040CH
Premium Haptic Rotary Encoder 62A11-01-040CH
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-040S
Premium Haptic Rotary Encoder 62A11-01-040S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-045C
Premium Haptic Rotary Encoder 62A11-01-045C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-050C
Premium Haptic Rotary Encoder 62A11-01-050C
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5
62A11-01-050S
Premium Haptic Rotary Encoder 62A11-01-050S
Output: Quadrature
Angle of Throw: Deck A: 11.25
Angle of Throw: Deck B: N/A
Supply Voltage (VDC): 5

Showing 50 of 494 results
