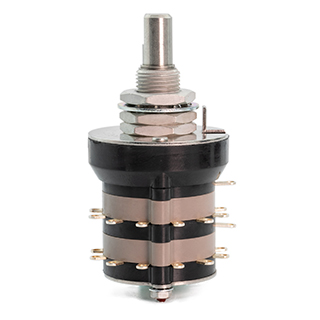

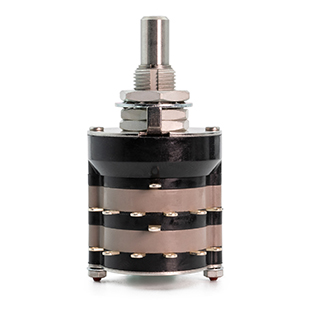

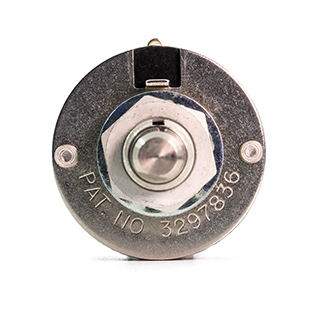

Product Image
Thumbnail 1 Thumbnail 2 Thumbnail 3

44D30-01-2-AJS

  • Rugged construction ensures switch operation for the life of your equipment
  • Many circuitry options
  • MIL Qualified: MIL-S-3786/4
  • Concentric Shaft
  • Poles: up to 6
  • Decks: up to 12
  • Angle of Throw: 30, 36, 45, 60, 90
  • Positions: 4, 6, 8, 10, 12
  • Rating (max): 1 Amp
  • Depth Behind Panel: 1.03" to 5.08"
Link copied to clipboard. Request Quote
  • Technical Data
  • Description
  • Drawings
  • Downloads
  • Where to Buy
  • 3D Model AvailableNo
  • Angle of Throw (°)30
  • Behind Panel (in)1.025
  • Contact TypeShorting
  • Fixed StopAdjustable
  • Maximum Switch Rating1 Amp
  • Mechanical Life Cycles100,000
  • Military RatedNo
  • Number of Decks1
  • Number of Poles2
  • Ordering Part Number44D30-01-2-AJS
  • OutputRotary
  • Positions per PoleADJ
  • Process SealNo
  • RoHS CompliantYes
  • Shaft & Panel SealNo
  • Shaft Diamter (in)0.25
  • Shaft StyleShaft
  • Stop Strength12 lbf in
  • TerminationSolder Lug
  • UL RatedNo
  • Rugged construction ensures switch operation for the life of your equipment
  • Many circuitry options
  • MIL Qualified: MIL-S-3786/4
  • Concentric Shaft
  • Poles: up to 6
  • Decks: up to 12
  • Angle of Throw: 30, 36, 45, 60, 90
  • Positions: 4, 6, 8, 10, 12
  • Rating (max): 1 Amp
  • Depth Behind Panel: 1.03" to 5.08"
DistributorQuantityRegionLocation
DigiKey4North AmericaUnited States
Master Electronics71North AmericaUnited States
Newark, An Avnet Company10North AmericaUnited States
Onlinecomponents.com73North AmericaUnited States
