Series: 57
- Smallest diameter rotary switch with this number of positions and current capacity
- Gold-plated contact system compatible with logic circuitry
- MIL Qualified: MIL-S-3786/36
- Pull-to-turn (isolated positions)
- Poles: up to 8
- Decks: up to 12
- Angle of Throw: 22.5
- Positions: 16
- Rating (max): 250 mA
- Body Size inches-Inches [mm]: 0.500 [12,70] diameter
- Depth Behind Panel-Inches [mm]: 0.600 [15,24]
Link copied to clipboard.
Request Quote
- Products
- Description

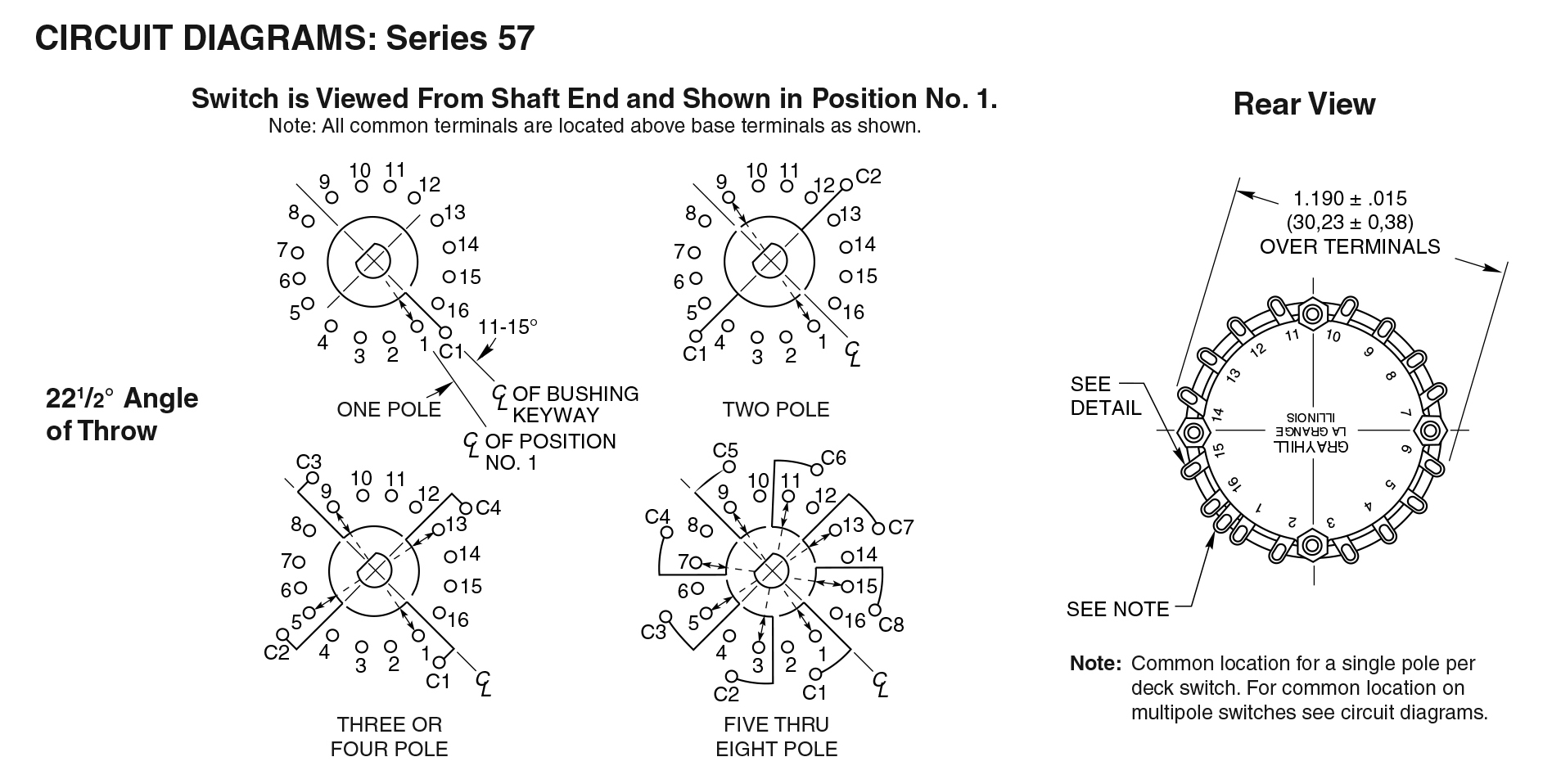

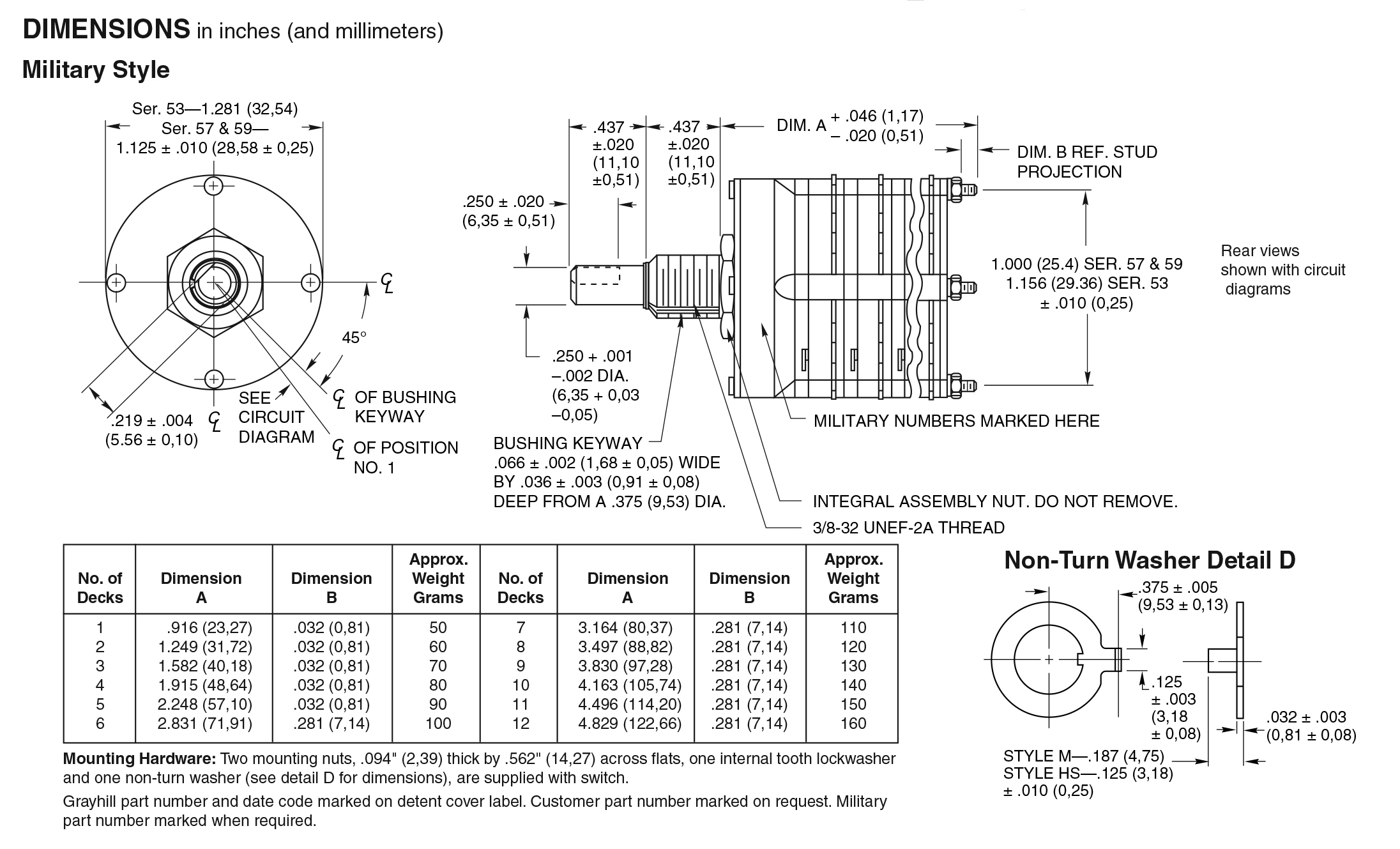

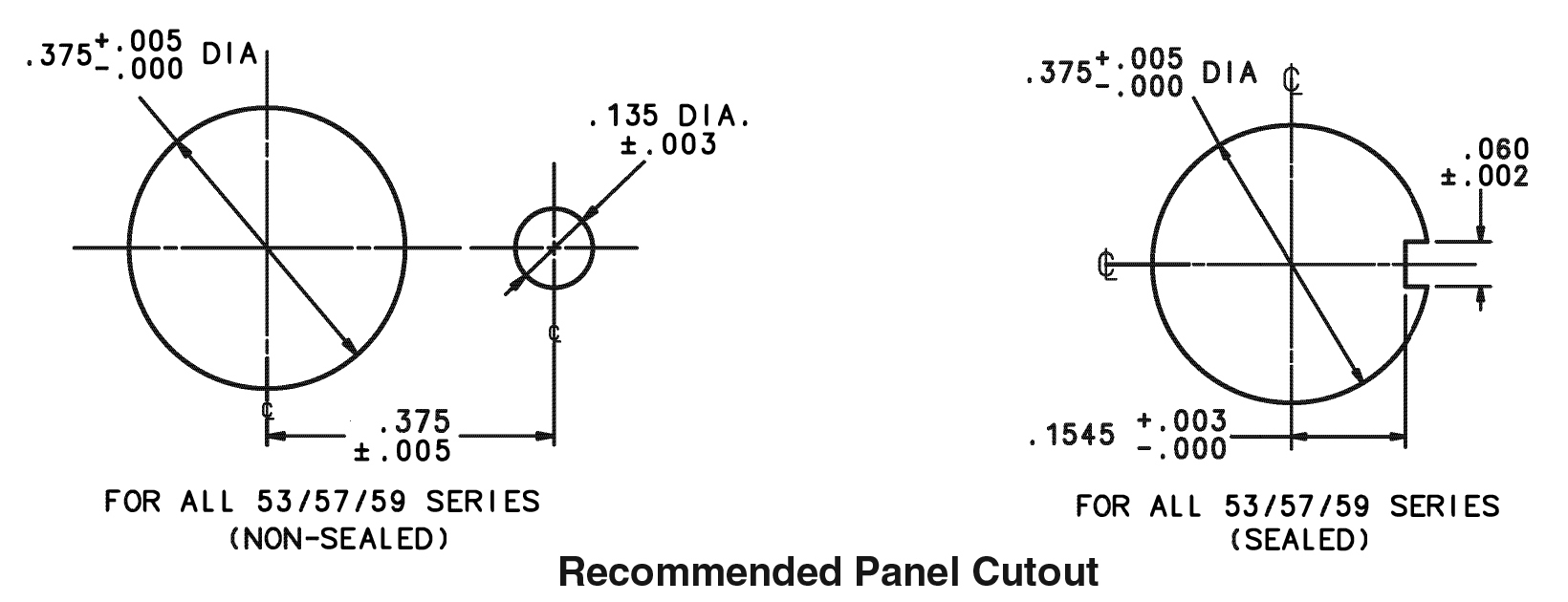

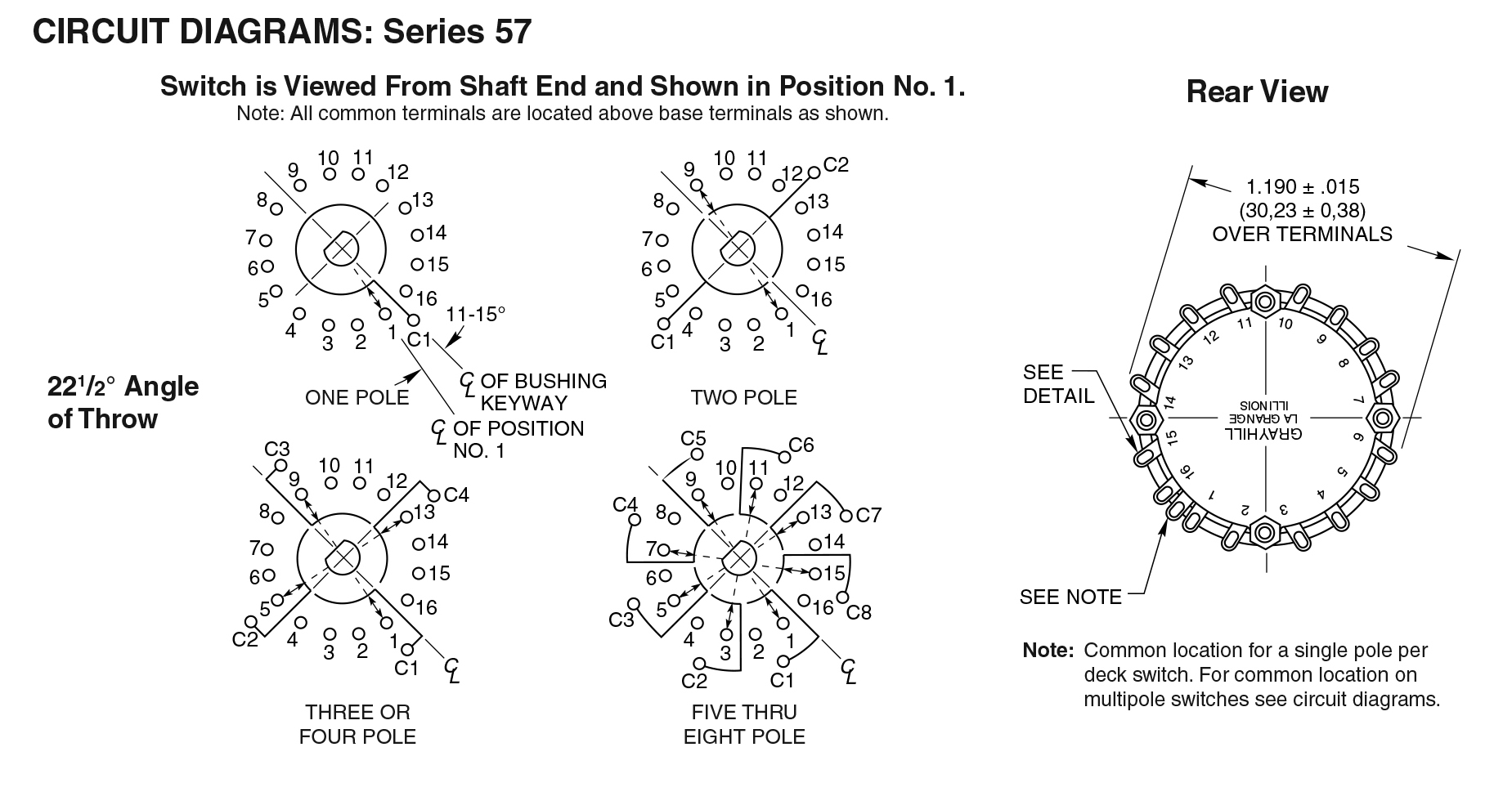

- Drawings
- Downloads
Product | Output | Angle of Throw (°) | Positions per Pole | Number of Decks |
---|---|---|---|---|
![]()

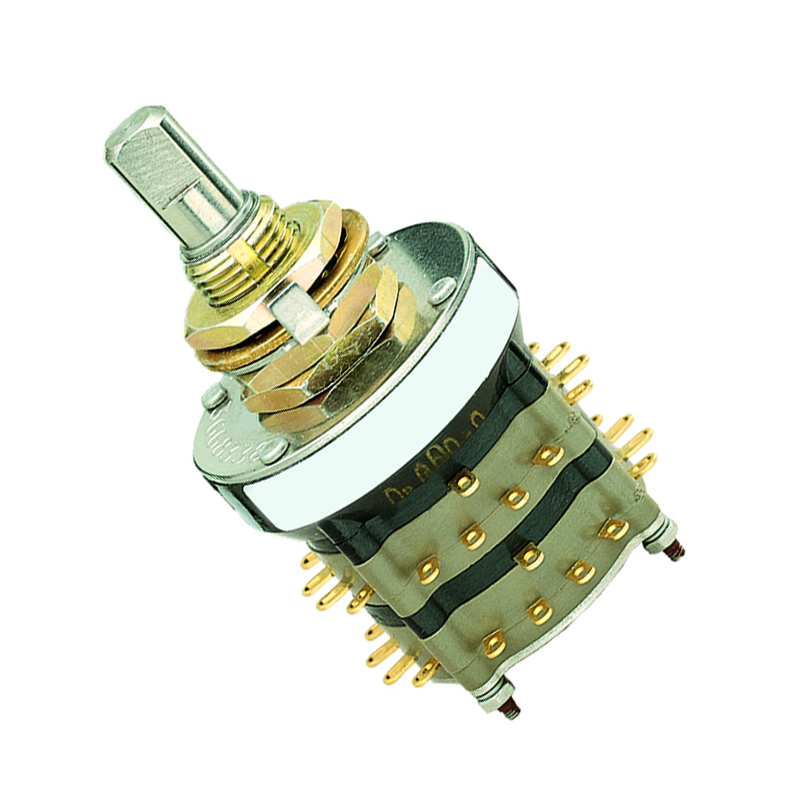

Multi-Deck Rotary Switch
57HS22-01-1-02N
|
Rotary | 22.5 | 2 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-02S
|
Rotary | 22.5 | 2 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-03N
|
Rotary | 22.5 | 3 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-03S
|
Rotary | 22.5 | 3 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-04N
|
Rotary | 22.5 | 4 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-04S
|
Rotary | 22.5 | 4 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-05N
|
Rotary | 22.5 | 5 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-05S
|
Rotary | 22.5 | 5 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-06N
|
Rotary | 22.5 | 6 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-06S
|
Rotary | 22.5 | 6 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-07S
|
Rotary | 22.5 | 7 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-08N
|
Rotary | 22.5 | 8 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-08S
|
Rotary | 22.5 | 8 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-09N
|
Rotary | 22.5 | 9 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-10N
|
Rotary | 22.5 | 10 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-10S
|
Rotary | 22.5 | 10 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-11N
|
Rotary | 22.5 | 11 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-11S
|
Rotary | 22.5 | 11 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-12N
|
Rotary | 22.5 | 12 | 1 |
![]()
Multi-Deck Rotary Switch
57HS22-01-1-12S
|
Rotary | 22.5 | 12 | 1 |
- Smallest diameter rotary switch with this number of positions and current capacity
- Gold-plated contact system compatible with logic circuitry
- MIL Qualified: MIL-S-3786/36
- Pull-to-turn (isolated positions)
- Poles: up to 8
- Decks: up to 12
- Angle of Throw: 22.5
- Positions: 16
- Rating (max): 250 mA
- Body Size inches-Inches [mm]: 0.500 [12,70] diameter
- Depth Behind Panel-Inches [mm]: 0.600 [15,24]
