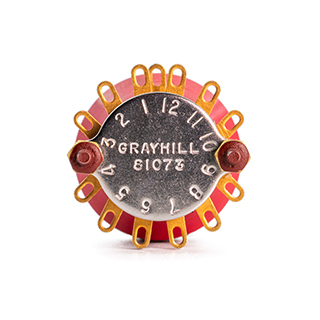

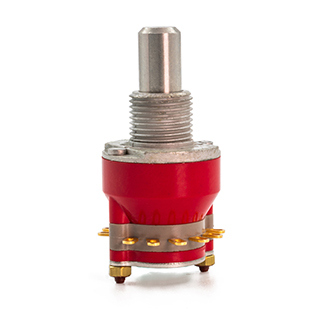

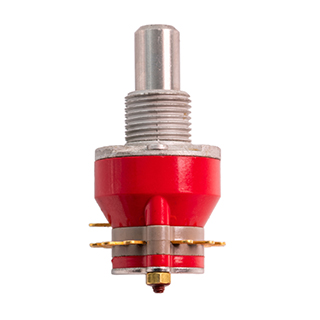

71BS30-03-1-05N
- Performance and value leader
- MIL Qualified: MIL-S-3786/39
- Poles: up to 6
- Decks: up to 12
- Angle of Throw: 30, 36
- Positions: 10, 12
- Rating (max): 250 mA
- Depth Behind Panel: 0.76" to 3.44"
Link copied to clipboard.
Request Quote
- Technical Data
- Description
- Drawings
- Downloads
- Where to Buy
- 3D Model AvailableNo
- Angle of Throw (°)30
- Behind Panel (in)1.197
- Contact TypeNon-Shorting
- Fixed StopFixed Stop
- Maximum Switch Rating250 mA
- Mechanical Life Cycles25,000
- Military RatedNo
- Number of Decks3
- Number of Poles1
- Ordering Part Number71BS30-03-1-05N
- OutputRotary
- Positions per Pole5
- Process SealNo
- RoHS CompliantYes
- Shaft & Panel SealYes
- Shaft Diamter (in)0.25
- Shaft StyleShaft
- Stop Strength10 lbf in
- TerminationSolder Lug
- UL RatedNo
- Performance and value leader
- MIL Qualified: MIL-S-3786/39
- Poles: up to 6
- Decks: up to 12
- Angle of Throw: 30, 36
- Positions: 10, 12
- Rating (max): 250 mA
- Depth Behind Panel: 0.76" to 3.44"
