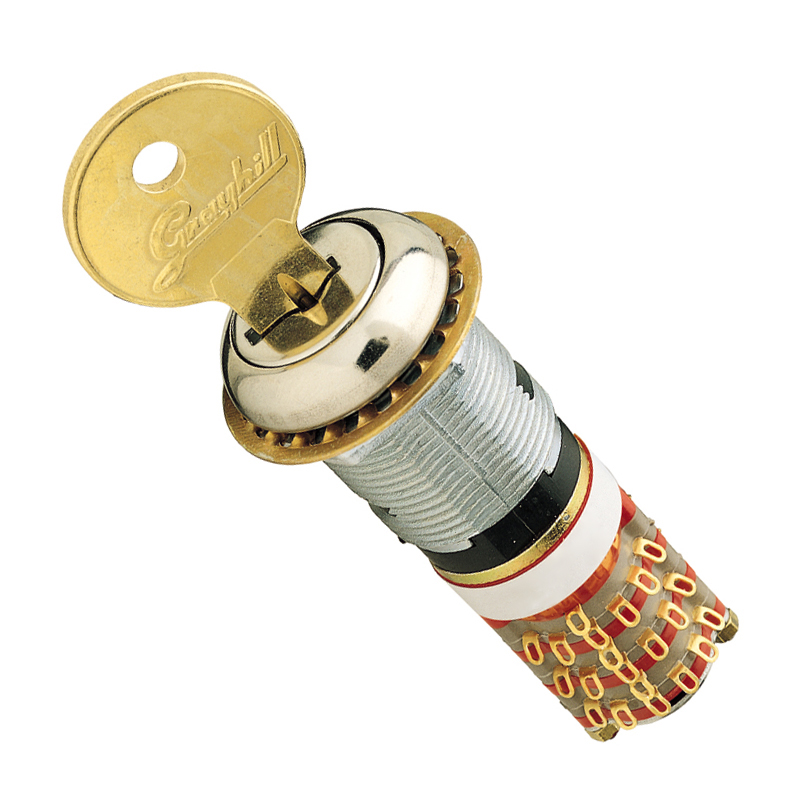

Series: 71J-L
- Economical
- Standard or anti-static style
- 5-plates, 1-sided key
- Multi-Deck optional anti-static
- Poles: up to 6
- Decks: up to 12
- Angle of Throw: 30, 36
- Positions: 10, 12
- Rating (max): 250 mA
- Depth Behind Panel: 1.40" to 4.25"
Link copied to clipboard.
Request Quote
- Products
- Description

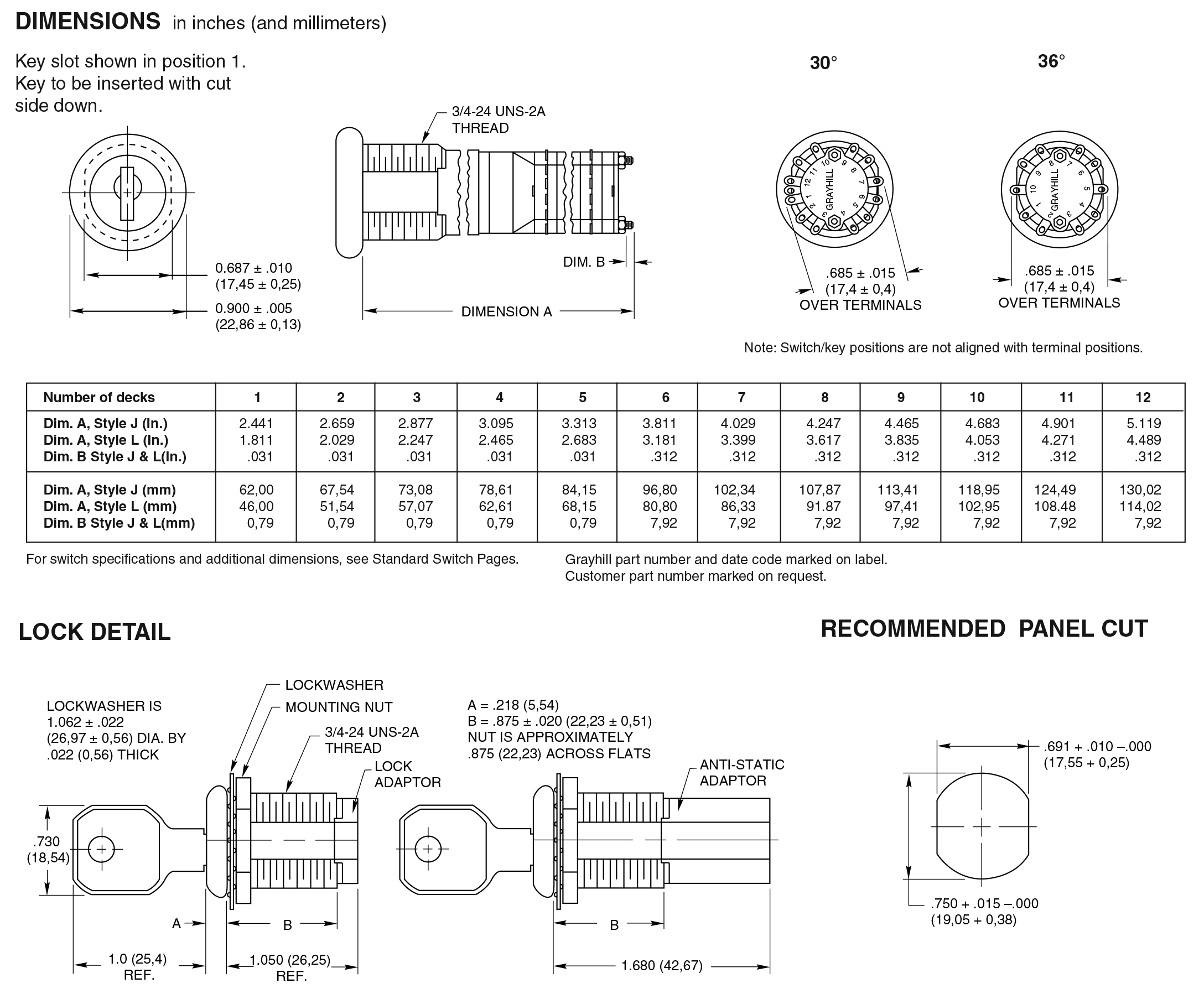

- Drawings
- Downloads
| Product | Output | Angle of Throw (°) | Positions per Pole | Number of Decks |
|---|---|---|---|---|
|
Keylock Rotary Switch
71J30-01-1-02N
|
30 | 2 | 1 | 1 |
|
Keylock Rotary Switch
71J30-01-1-03N
|
30 | 3 | 1 | 1 |
|
Keylock Rotary Switch
71J30-01-1-06N
|
30 | 6 | 1 | 1 |
|
Keylock Rotary Switch
71J30-01-3-03N
|
30 | 3 | 1 | 3 |
|
Keylock Rotary Switch
71J30-01-4-02N
|
30 | 2 | 1 | 4 |
|
Keylock Rotary Switch
71J30-01-4-03S
|
30 | 3 | 1 | 4 |
|
Keylock Rotary Switch
71J30-01-6-02N
|
30 | 2 | 1 | 6 |
|
Keylock Rotary Switch
71J30-02-2-05N
|
30 | 5 | 2 | 2 |
|
Keylock Rotary Switch
71J30-02-6-02N
|
30 | 2 | 2 | 6 |
|
Keylock Rotary Switch
71J30-03-1-05N
|
30 | 5 | 3 | 1 |
|
Keylock Rotary Switch
71J30-03-2-03S
|
30 | 3 | 3 | 2 |
|
Keylock Rotary Switch
71J30-03-5-02N
|
30 | 2 | 3 | 5 |
|
Keylock Rotary Switch
71J30-04-3-02N
|
30 | 2 | 4 | 3 |
|
Keylock Rotary Switch
71J30-04-4-03N
|
30 | 3 | 4 | 4 |
|
Keylock Rotary Switch
71J30-05-3-02N
|
30 | 2 | 5 | 3 |
|
Keylock Rotary Switch
71J30-06-2-06N
|
30 | 6 | 6 | 2 |
|
Keylock Rotary Switch
71J30-08-2-06N
|
30 | 6 | 8 | 2 |
|
Keylock Rotary Switch
71J36-01-1-02N
|
36 | 2 | 1 | 1 |
|
Keylock Rotary Switch
71J36-01-1-02S
|
36 | 2 | 1 | 1 |
|
Keylock Rotary Switch
71J36-01-1-03N
|
36 | 3 | 1 | 1 |
|
Keylock Rotary Switch
71J36-01-1-04N
|
36 | 4 | 1 | 1 |
|
Keylock Rotary Switch
71J36-01-1-05S
|
36 | 5 | 1 | 1 |
|
Keylock Rotary Switch
71J36-01-1-06N
|
36 | 6 | 1 | 1 |
|
Keylock Rotary Switch
71J36-01-2-02N
|
36 | 2 | 1 | 2 |
|
Keylock Rotary Switch
71J36-01-2-03N
|
36 | 3 | 1 | 2 |
|
Keylock Rotary Switch
71J36-01-2-03S
|
36 | 3 | 1 | 2 |
|
Keylock Rotary Switch
71J36-01-2-04N
|
36 | 4 | 1 | 2 |
|
Keylock Rotary Switch
71J36-01-2-05S
|
36 | 5 | 1 | 2 |
|
Keylock Rotary Switch
71J36-02-1-10S-C
|
36 | 10 | 2 | 1 |
|
Keylock Rotary Switch
71J36-02-2-02N
|
36 | 2 | 2 | 2 |
|
Keylock Rotary Switch
71J36-02-2-02S
|
36 | 2 | 2 | 2 |
|
Keylock Rotary Switch
71J36-02-2-03N
|
36 | 3 | 2 | 2 |
|
Keylock Rotary Switch
71J36-02-2-03S
|
36 | 3 | 2 | 2 |
|
Keylock Rotary Switch
71J36-02-2-04N
|
36 | 4 | 2 | 2 |
|
Keylock Rotary Switch
71J36-02-2-04S
|
36 | 4 | 2 | 2 |
|
Keylock Rotary Switch
71J36-02-2-05N
|
36 | 5 | 2 | 2 |
|
Keylock Rotary Switch
71J36-03-1-05N
|
36 | 5 | 3 | 1 |
|
Keylock Rotary Switch
71J36-03-2-02N
|
36 | 2 | 3 | 2 |
|
Keylock Rotary Switch
71J36-03-2-02S
|
36 | 2 | 3 | 2 |
|
Keylock Rotary Switch
71J36-03-2-04N
|
36 | 4 | 3 | 2 |
|
Keylock Rotary Switch
71J36-03-2-05N
|
36 | 5 | 3 | 2 |
|
Keylock Rotary Switch
71J36-04-1-02N
|
36 | 2 | 4 | 1 |
|
Keylock Rotary Switch
71J36-04-1-03N
|
36 | 3 | 4 | 1 |
|
Keylock Rotary Switch
71J36-04-2-02N
|
36 | 2 | 4 | 2 |
|
Keylock Rotary Switch
71J36-04-2-03N
|
36 | 3 | 4 | 2 |
|
Keylock Rotary Switch
71J36-05-1-02S
|
2 | 5 | 1 | |
|
Keylock Rotary Switch
71J36-05-2-03N
|
36 | 3 | 5 | 2 |
|
Keylock Rotary Switch
71J36-06-2-03N
|
36 | 3 | 6 | 2 |
|
Keylock Rotary Switch
71J36-08-2-03N
|
36 | 3 | 8 | 2 |
|
Keylock Rotary Switch
71L30-01-1-02N
|
30 | 2 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-03N
|
30 | 3 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-04N
|
30 | 4 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-05N
|
30 | 5 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-06N
|
30 | 6 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-07N
|
30 | 7 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-08N
|
30 | 8 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-09N
|
30 | 9 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-09S
|
30 | 9 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-10N
|
30 | 10 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-11N
|
30 | 11 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-12N-C
|
30 | 12 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-1-12N-F
|
30 | 12 | 1 | 1 |
|
Keylock Rotary Switch
71L30-01-2-02S
|
30 | 2 | 1 | 2 |
|
Keylock Rotary Switch
71L30-01-2-03S
|
30 | 3 | 1 | 2 |
|
Keylock Rotary Switch
71L30-01-2-04N
|
30 | 4 | 1 | 2 |
|
Keylock Rotary Switch
71L30-01-2-05N
|
30 | 5 | 1 | 2 |
|
Keylock Rotary Switch
71L30-01-2-06N
|
30 | 6 | 1 | 2 |
|
Keylock Rotary Switch
71L30-01-3-02N
|
30 | 2 | 1 | 3 |
|
Keylock Rotary Switch
71L30-01-3-02S
|
30 | 2 | 1 | 3 |
|
Keylock Rotary Switch
71L30-01-3-03N
|
30 | 3 | 1 | 3 |
|
Keylock Rotary Switch
71L30-01-4-02N
|
30 | 2 | 1 | 4 |
|
Keylock Rotary Switch
71L30-01-4-03N
|
30 | 3 | 1 | 4 |
|
Keylock Rotary Switch
71L30-01-4-03S
|
30 | 3 | 1 | 4 |
|
Keylock Rotary Switch
71L30-01-5-02N
|
30 | 2 | 1 | 5 |
|
Keylock Rotary Switch
71L30-01-6-02N
|
30 | 2 | 1 | 6 |
|
Keylock Rotary Switch
71L30-02-1-02N
|
30 | 2 | 2 | 1 |
|
Keylock Rotary Switch
71L30-02-1-03N
|
30 | 3 | 2 | 1 |
|
Keylock Rotary Switch
71L30-02-1-04N
|
30 | 4 | 2 | 1 |
|
Keylock Rotary Switch
71L30-02-1-12N-C
|
30 | 12 | 2 | 1 |
|
Keylock Rotary Switch
71L30-02-2-02N
|
30 | 2 | 2 | 2 |
|
Keylock Rotary Switch
71L30-02-2-03N
|
30 | 3 | 2 | 2 |
|
Keylock Rotary Switch
71L30-02-2-04N
|
30 | 4 | 2 | 2 |
|
Keylock Rotary Switch
71L30-02-2-04S
|
30 | 4 | 2 | 2 |
|
Keylock Rotary Switch
71L30-02-2-06N
|
30 | 6 | 2 | 2 |
|
Keylock Rotary Switch
71L30-02-2-06S
|
30 | 6 | 2 | 2 |
|
Keylock Rotary Switch
71L30-02-4-02N
|
30 | 2 | 2 | 4 |
|
Keylock Rotary Switch
71L30-02-4-03N
|
30 | 3 | 2 | 4 |
|
Keylock Rotary Switch
71L30-02-6-02N
|
30 | 2 | 2 | 6 |
|
Keylock Rotary Switch
71L30-03-1-02N
|
30 | 2 | 3 | 1 |
|
Keylock Rotary Switch
71L30-03-1-03N
|
30 | 3 | 3 | 1 |
|
Keylock Rotary Switch
71L30-03-1-07S
|
30 | 7 | 3 | 1 |
|
Keylock Rotary Switch
71L30-03-1-08N
|
30 | 8 | 3 | 1 |
|
Keylock Rotary Switch
71L30-03-1-12N-F
|
30 | 12 | 3 | 1 |
|
Keylock Rotary Switch
71L30-03-2-02N
|
30 | 2 | 3 | 2 |
|
Keylock Rotary Switch
71L30-03-2-03N
|
30 | 3 | 3 | 2 |
|
Keylock Rotary Switch
71L30-03-2-04N
|
30 | 4 | 3 | 2 |
|
Keylock Rotary Switch
71L30-03-2-05N
|
30 | 5 | 3 | 2 |
|
Keylock Rotary Switch
71L30-03-2-06N
|
30 | 6 | 3 | 2 |
|
Keylock Rotary Switch
71L30-03-3-02N
|
30 | 2 | 3 | 3 |
|
Keylock Rotary Switch
71L30-03-4-03N
|
30 | 3 | 3 | 4 |
|
Keylock Rotary Switch
71L30-03-5-02N
|
30 | 2 | 3 | 5 |
|
Keylock Rotary Switch
71L30-04-1-02N
|
30 | 2 | 4 | 1 |
|
Keylock Rotary Switch
71L30-04-1-04N
|
30 | 4 | 4 | 1 |
|
Keylock Rotary Switch
71L30-04-1-06N
|
30 | 6 | 4 | 1 |
|
Keylock Rotary Switch
71L30-04-2-05N
|
30 | 5 | 4 | 2 |
|
Keylock Rotary Switch
71L30-04-2-06N
|
30 | 6 | 4 | 2 |
|
Keylock Rotary Switch
71L30-04-3-03N
|
30 | 3 | 4 | 3 |
|
Keylock Rotary Switch
71L30-04-4-02N
|
30 | 2 | 4 | 4 |
|
Keylock Rotary Switch
71L30-04-4-03N
|
30 | 3 | 4 | 4 |
|
Keylock Rotary Switch
71L30-05-2-05N
|
30 | 5 | 5 | 2 |
|
Keylock Rotary Switch
71L30-06-1-04N
|
30 | 4 | 6 | 1 |
|
Keylock Rotary Switch
71L30-06-1-12S-F
|
30 | 12 | 6 | 1 |
|
Keylock Rotary Switch
71L30-07-2-06N
|
30 | 6 | 7 | 2 |
|
Keylock Rotary Switch
71L30-08-1-02N
|
30 | 2 | 8 | 1 |
|
Keylock Rotary Switch
71L30-08-2-02N
|
30 | 2 | 8 | 2 |
|
Keylock Rotary Switch
71L30-08-2-04N
|
30 | 4 | 8 | 2 |
|
Keylock Rotary Switch
71L30-08-2-06N
|
30 | 6 | 8 | 2 |
|
Keylock Rotary Switch
71L30-12-1-02N
|
30 | 2 | 12 | 1 |
|
Keylock Rotary Switch
71L36-01-1-02N
|
36 | 2 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-03N
|
36 | 3 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-04N
|
36 | 4 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-05N
|
36 | 5 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-05S
|
36 | 5 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-07N
|
36 | 7 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-08N
|
36 | 8 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-09N
|
36 | 9 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-10N-F
|
36 | 10 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-10S-C
|
36 | 10 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-1-10S-F
|
36 | 10 | 1 | 1 |
|
Keylock Rotary Switch
71L36-01-2-02N
|
36 | 2 | 1 | 2 |
|
Keylock Rotary Switch
71L36-01-2-03N
|
36 | 3 | 1 | 2 |
|
Keylock Rotary Switch
71L36-01-2-03S
|
36 | 3 | 1 | 2 |
|
Keylock Rotary Switch
71L36-01-2-04N
|
36 | 4 | 1 | 2 |
|
Keylock Rotary Switch
71L36-01-2-05N
|
36 | 5 | 1 | 2 |
|
Keylock Rotary Switch
71L36-01-2-05S
|
36 | 5 | 1 | 2 |
|
Keylock Rotary Switch
71L36-02-1-02N
|
36 | 2 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-03N
|
36 | 3 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-03S
|
36 | 3 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-04N
|
36 | 4 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-06N
|
36 | 6 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-08N
|
36 | 8 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-09N
|
36 | 9 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-10N-C
|
36 | 10 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-10N-F
|
36 | 10 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-1-10S-F
|
36 | 10 | 2 | 1 |
|
Keylock Rotary Switch
71L36-02-2-02N
|
36 | 2 | 2 | 2 |
|
Keylock Rotary Switch
71L36-02-2-02S
|
36 | 2 | 2 | 2 |
|
Keylock Rotary Switch
71L36-02-2-03N
|
36 | 3 | 2 | 2 |
|
Keylock Rotary Switch
71L36-02-2-03S
|
36 | 3 | 2 | 2 |
|
Keylock Rotary Switch
71L36-02-2-04N
|
36 | 4 | 2 | 2 |
|
Keylock Rotary Switch
71L36-02-2-05S
|
36 | 5 | 2 | 2 |
|
Keylock Rotary Switch
71L36-03-1-03S
|
36 | 3 | 3 | 1 |
|
Keylock Rotary Switch
71L36-03-1-04N
|
36 | 4 | 3 | 1 |
|
Keylock Rotary Switch
71L36-03-1-05N
|
36 | 5 | 3 | 1 |
|
Keylock Rotary Switch
71L36-03-1-06N
|
36 | 6 | 3 | 1 |
|
Keylock Rotary Switch
71L36-03-1-07N
|
36 | 7 | 3 | 1 |
|
Keylock Rotary Switch
71L36-03-1-07S
|
36 | 7 | 3 | 1 |
|
Keylock Rotary Switch
71L36-03-1-08N
|
36 | 8 | 3 | 1 |
|
Keylock Rotary Switch
71L36-03-1-10S-F
|
36 | 10 | 3 | 1 |
|
Keylock Rotary Switch
71L36-03-2-02N
|
36 | 2 | 3 | 2 |
|
Keylock Rotary Switch
71L36-03-2-02S
|
36 | 2 | 3 | 2 |
|
Keylock Rotary Switch
71L36-03-2-03N
|
36 | 3 | 3 | 2 |
|
Keylock Rotary Switch
71L36-03-2-04N
|
36 | 4 | 3 | 2 |
|
Keylock Rotary Switch
71L36-03-2-05N
|
36 | 5 | 3 | 2 |
|
Keylock Rotary Switch
71L36-04-1-02N
|
36 | 2 | 4 | 1 |
|
Keylock Rotary Switch
71L36-04-1-03S
|
36 | 3 | 4 | 1 |
|
Keylock Rotary Switch
71L36-04-1-10N-C
|
36 | 10 | 4 | 1 |
|
Keylock Rotary Switch
71L36-04-2-02N
|
36 | 2 | 4 | 2 |
|
Keylock Rotary Switch
71L36-05-1-02N
|
36 | 2 | 5 | 1 |
|
Keylock Rotary Switch
71L36-05-1-03N
|
36 | 3 | 5 | 1 |
|
Keylock Rotary Switch
71L36-05-1-04N
|
36 | 4 | 5 | 1 |
|
Keylock Rotary Switch
71L36-05-1-05N
|
36 | 5 | 5 | 1 |
|
Keylock Rotary Switch
71L36-06-1-02N
|
36 | 2 | 6 | 1 |
|
Keylock Rotary Switch
71L36-06-2-02N
|
36 | 2 | 6 | 2 |
|
Keylock Rotary Switch
71L36-07-2-02S
|
36 | 2 | 7 | 2 |
|
Keylock Rotary Switch
71L36-11-1-02N
|
36 | 2 | 11 | 1 |
|
Keylock Rotary Switch
71L36-12-1-02N
|
36 | 2 | 12 | 1 |
- Economical
- Standard or anti-static style
- 5-plates, 1-sided key
- Multi-Deck optional anti-static
- Poles: up to 6
- Decks: up to 12
- Angle of Throw: 30, 36
- Positions: 10, 12
- Rating (max): 250 mA
- Depth Behind Panel: 1.40" to 4.25"
- Economical
- Standard or anti-static style
- 5-plates, 1-sided key
- Multi-Deck optional anti-static
- Poles: up to 6
- Decks: up to 12
- Angle of Throw: 30, 36
- Positions: 10, 12
- Rating (max): 250 mA
- Depth Behind Panel: 1.40" to 4.25"
Products
|
|
Keylock Rotary Switch
71J30-01-1-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J30-01-1-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J30-01-1-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J30-01-3-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 3 |
|
|
Keylock Rotary Switch
71J30-01-4-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71J30-01-4-03S
Output: 30 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71J30-01-6-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 6 |
|
|
Keylock Rotary Switch
71J30-02-2-05N
Output: 30 Angle of Throw (°): 5 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J30-02-6-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 6 |
|
|
Keylock Rotary Switch
71J30-03-1-05N
Output: 30 Angle of Throw (°): 5 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J30-03-2-03S
Output: 30 Angle of Throw (°): 3 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J30-03-5-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 5 |
|
|
Keylock Rotary Switch
71J30-04-3-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 4 Number of Decks: 3 |
|
|
Keylock Rotary Switch
71J30-04-4-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 4 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71J30-05-3-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 5 Number of Decks: 3 |
|
|
Keylock Rotary Switch
71J30-06-2-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 6 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J30-08-2-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-01-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-01-1-02S
Output: 36 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-01-1-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-01-1-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-01-1-05S
Output: 36 Angle of Throw (°): 5 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-01-1-06N
Output: 36 Angle of Throw (°): 6 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-01-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-01-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-01-2-03S
Output: 36 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-01-2-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-01-2-05S
Output: 36 Angle of Throw (°): 5 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-02-1-10S-C
Output: 36 Angle of Throw (°): 10 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-02-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-02-2-02S
Output: 36 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-02-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-02-2-03S
Output: 36 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-02-2-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-02-2-04S
Output: 36 Angle of Throw (°): 4 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-02-2-05N
Output: 36 Angle of Throw (°): 5 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-03-1-05N
Output: 36 Angle of Throw (°): 5 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-03-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-03-2-02S
Output: 36 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-03-2-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-03-2-05N
Output: 36 Angle of Throw (°): 5 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-04-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-04-1-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-04-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-04-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-05-1-02S
Output: Angle of Throw (°): 2 Positions per Pole: 5 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71J36-05-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 5 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-06-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 6 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71J36-08-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-01-1-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-04N
Output: 30 Angle of Throw (°): 4 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-05N
Output: 30 Angle of Throw (°): 5 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-07N
Output: 30 Angle of Throw (°): 7 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-08N
Output: 30 Angle of Throw (°): 8 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-09N
Output: 30 Angle of Throw (°): 9 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-09S
Output: 30 Angle of Throw (°): 9 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-10N
Output: 30 Angle of Throw (°): 10 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-11N
Output: 30 Angle of Throw (°): 11 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-12N-C
Output: 30 Angle of Throw (°): 12 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-1-12N-F
Output: 30 Angle of Throw (°): 12 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-01-2-02S
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-01-2-03S
Output: 30 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-01-2-04N
Output: 30 Angle of Throw (°): 4 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-01-2-05N
Output: 30 Angle of Throw (°): 5 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-01-2-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-01-3-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 3 |
|
|
Keylock Rotary Switch
71L30-01-3-02S
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 3 |
|
|
Keylock Rotary Switch
71L30-01-3-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 3 |
|
|
Keylock Rotary Switch
71L30-01-4-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71L30-01-4-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71L30-01-4-03S
Output: 30 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71L30-01-5-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 5 |
|
|
Keylock Rotary Switch
71L30-01-6-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 6 |
|
|
Keylock Rotary Switch
71L30-02-1-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-02-1-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-02-1-04N
Output: 30 Angle of Throw (°): 4 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-02-1-12N-C
Output: 30 Angle of Throw (°): 12 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-02-2-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-02-2-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-02-2-04N
Output: 30 Angle of Throw (°): 4 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-02-2-04S
Output: 30 Angle of Throw (°): 4 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-02-2-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-02-2-06S
Output: 30 Angle of Throw (°): 6 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-02-4-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71L30-02-4-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71L30-02-6-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 6 |
|
|
Keylock Rotary Switch
71L30-03-1-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-03-1-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-03-1-07S
Output: 30 Angle of Throw (°): 7 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-03-1-08N
Output: 30 Angle of Throw (°): 8 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-03-1-12N-F
Output: 30 Angle of Throw (°): 12 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-03-2-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-03-2-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-03-2-04N
Output: 30 Angle of Throw (°): 4 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-03-2-05N
Output: 30 Angle of Throw (°): 5 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-03-2-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-03-3-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 3 |
|
|
Keylock Rotary Switch
71L30-03-4-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 3 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71L30-03-5-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 5 |
|
|
Keylock Rotary Switch
71L30-04-1-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-04-1-04N
Output: 30 Angle of Throw (°): 4 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-04-1-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-04-2-05N
Output: 30 Angle of Throw (°): 5 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-04-2-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-04-3-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 4 Number of Decks: 3 |
|
|
Keylock Rotary Switch
71L30-04-4-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 4 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71L30-04-4-03N
Output: 30 Angle of Throw (°): 3 Positions per Pole: 4 Number of Decks: 4 |
|
|
Keylock Rotary Switch
71L30-05-2-05N
Output: 30 Angle of Throw (°): 5 Positions per Pole: 5 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-06-1-04N
Output: 30 Angle of Throw (°): 4 Positions per Pole: 6 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-06-1-12S-F
Output: 30 Angle of Throw (°): 12 Positions per Pole: 6 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-07-2-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 7 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-08-1-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 8 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L30-08-2-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-08-2-04N
Output: 30 Angle of Throw (°): 4 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-08-2-06N
Output: 30 Angle of Throw (°): 6 Positions per Pole: 8 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L30-12-1-02N
Output: 30 Angle of Throw (°): 2 Positions per Pole: 12 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-05N
Output: 36 Angle of Throw (°): 5 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-05S
Output: 36 Angle of Throw (°): 5 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-07N
Output: 36 Angle of Throw (°): 7 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-08N
Output: 36 Angle of Throw (°): 8 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-09N
Output: 36 Angle of Throw (°): 9 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-10N-F
Output: 36 Angle of Throw (°): 10 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-10S-C
Output: 36 Angle of Throw (°): 10 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-1-10S-F
Output: 36 Angle of Throw (°): 10 Positions per Pole: 1 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-01-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-01-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-01-2-03S
Output: 36 Angle of Throw (°): 3 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-01-2-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-01-2-05N
Output: 36 Angle of Throw (°): 5 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-01-2-05S
Output: 36 Angle of Throw (°): 5 Positions per Pole: 1 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-02-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-03S
Output: 36 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-06N
Output: 36 Angle of Throw (°): 6 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-08N
Output: 36 Angle of Throw (°): 8 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-09N
Output: 36 Angle of Throw (°): 9 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-10N-C
Output: 36 Angle of Throw (°): 10 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-10N-F
Output: 36 Angle of Throw (°): 10 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-1-10S-F
Output: 36 Angle of Throw (°): 10 Positions per Pole: 2 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-02-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-02-2-02S
Output: 36 Angle of Throw (°): 2 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-02-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-02-2-03S
Output: 36 Angle of Throw (°): 3 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-02-2-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-02-2-05S
Output: 36 Angle of Throw (°): 5 Positions per Pole: 2 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-03-1-03S
Output: 36 Angle of Throw (°): 3 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-03-1-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-03-1-05N
Output: 36 Angle of Throw (°): 5 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-03-1-06N
Output: 36 Angle of Throw (°): 6 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-03-1-07N
Output: 36 Angle of Throw (°): 7 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-03-1-07S
Output: 36 Angle of Throw (°): 7 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-03-1-08N
Output: 36 Angle of Throw (°): 8 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-03-1-10S-F
Output: 36 Angle of Throw (°): 10 Positions per Pole: 3 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-03-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-03-2-02S
Output: 36 Angle of Throw (°): 2 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-03-2-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-03-2-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-03-2-05N
Output: 36 Angle of Throw (°): 5 Positions per Pole: 3 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-04-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-04-1-03S
Output: 36 Angle of Throw (°): 3 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-04-1-10N-C
Output: 36 Angle of Throw (°): 10 Positions per Pole: 4 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-04-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 4 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-05-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 5 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-05-1-03N
Output: 36 Angle of Throw (°): 3 Positions per Pole: 5 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-05-1-04N
Output: 36 Angle of Throw (°): 4 Positions per Pole: 5 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-05-1-05N
Output: 36 Angle of Throw (°): 5 Positions per Pole: 5 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-06-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 6 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-06-2-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 6 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-07-2-02S
Output: 36 Angle of Throw (°): 2 Positions per Pole: 7 Number of Decks: 2 |
|
|
Keylock Rotary Switch
71L36-11-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 11 Number of Decks: 1 |
|
|
Keylock Rotary Switch
71L36-12-1-02N
Output: 36 Angle of Throw (°): 2 Positions per Pole: 12 Number of Decks: 1 |
