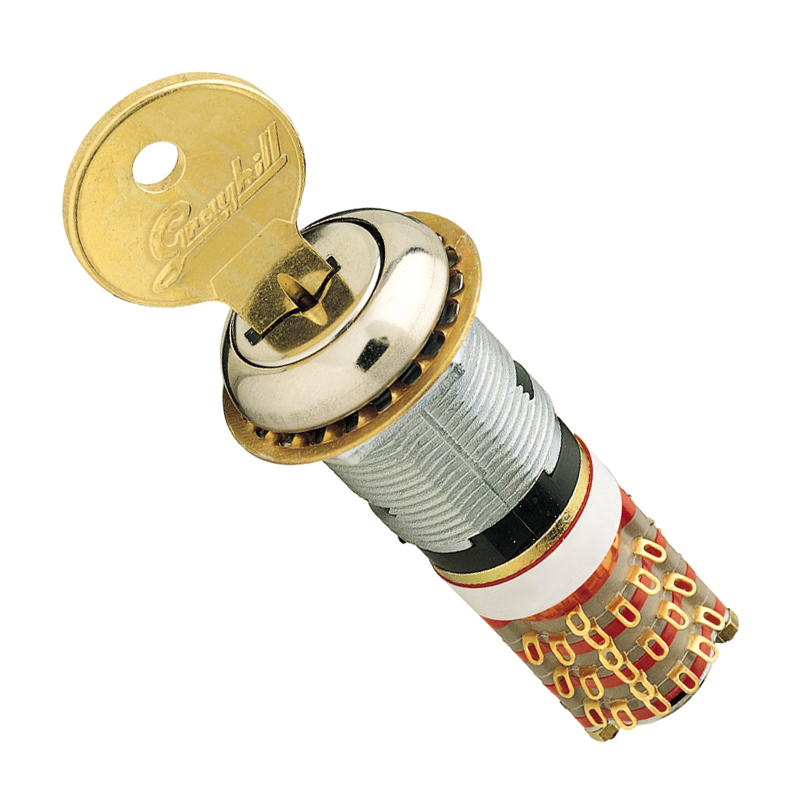

71L30-01-1-09S
- Economical
- Standard or anti-static style
- 5-plates, 1-sided key
- Multi-Deck optional anti-static
- Poles: up to 6
- Decks: up to 12
- Angle of Throw: 30, 36
- Positions: 10, 12
- Rating (max): 250 mA
- Depth Behind Panel: 1.40" to 4.25"
Link copied to clipboard.
Request Quote
- Technical Data
- Description

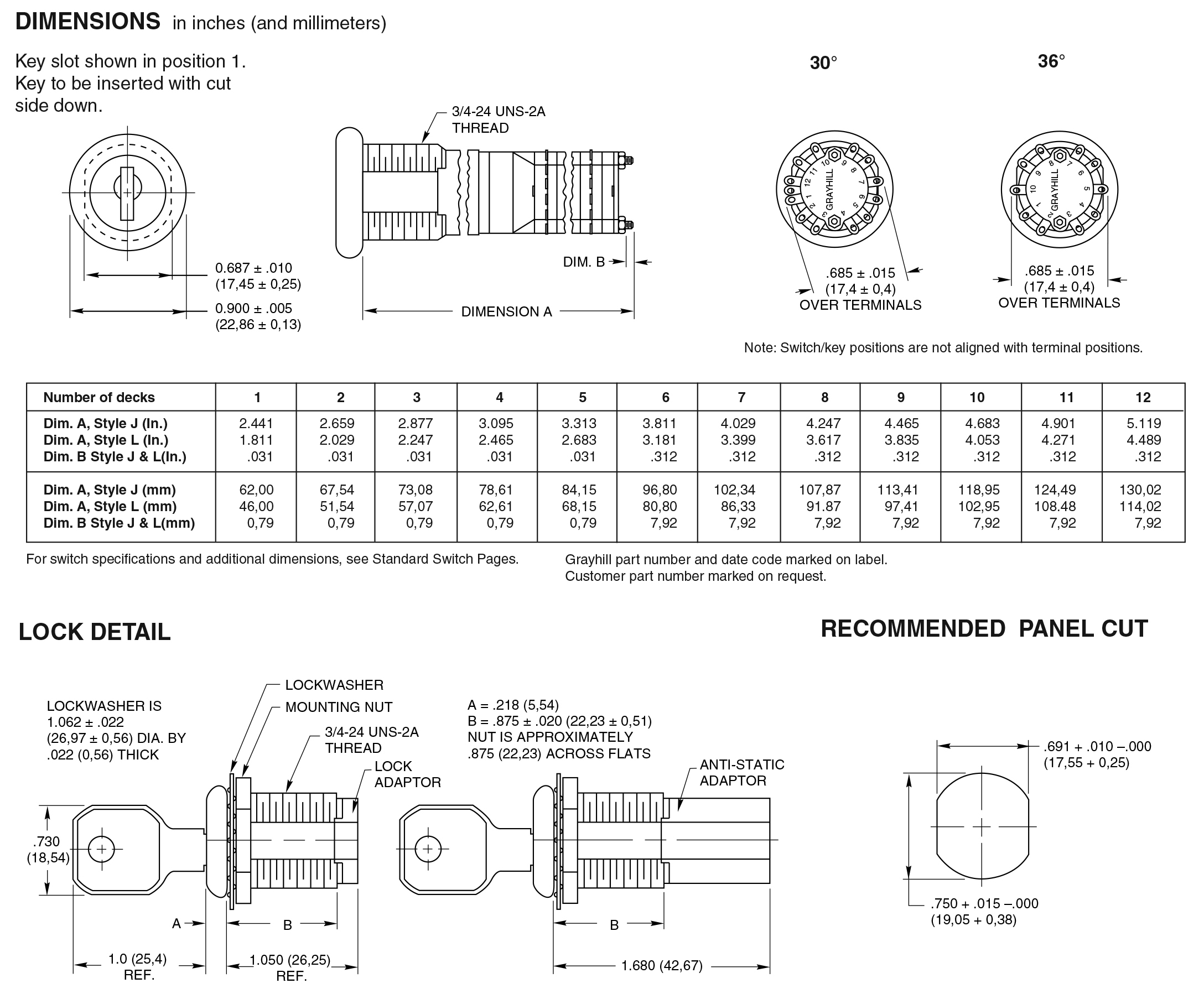

- Drawings
- Downloads
- Where to Buy
- 3D Model AvailableNo
- Angle of Throw (°)30
- Behind Panel (in)1.811
- Contact TypeShorting
- Fixed StopFixed Stop
- Maximum Switch Rating250 mA
- Mechanical Life Cycles25,000
- Military RatedNo
- Number of Decks1
- Number of Poles1
- Ordering Part Number71L30-01-1-09S
- OutputRotary
- Positions per Pole9
- Process SealNo
- RoHS CompliantYes
- Shaft & Panel SealNo
- Shaft Diamter (in)Key
- Shaft StyleKeyswitch
- Stop Strength10 lbf in
- TerminationSolder Lug
- UL RatedNo
- Economical
- Standard or anti-static style
- 5-plates, 1-sided key
- Multi-Deck optional anti-static
- Poles: up to 6
- Decks: up to 12
- Angle of Throw: 30, 36
- Positions: 10, 12
- Rating (max): 250 mA
- Depth Behind Panel: 1.40" to 4.25"
