Back to Series 43-54-D-UD-M Link copied to clipboard.
Product Image
Thumbnail 1

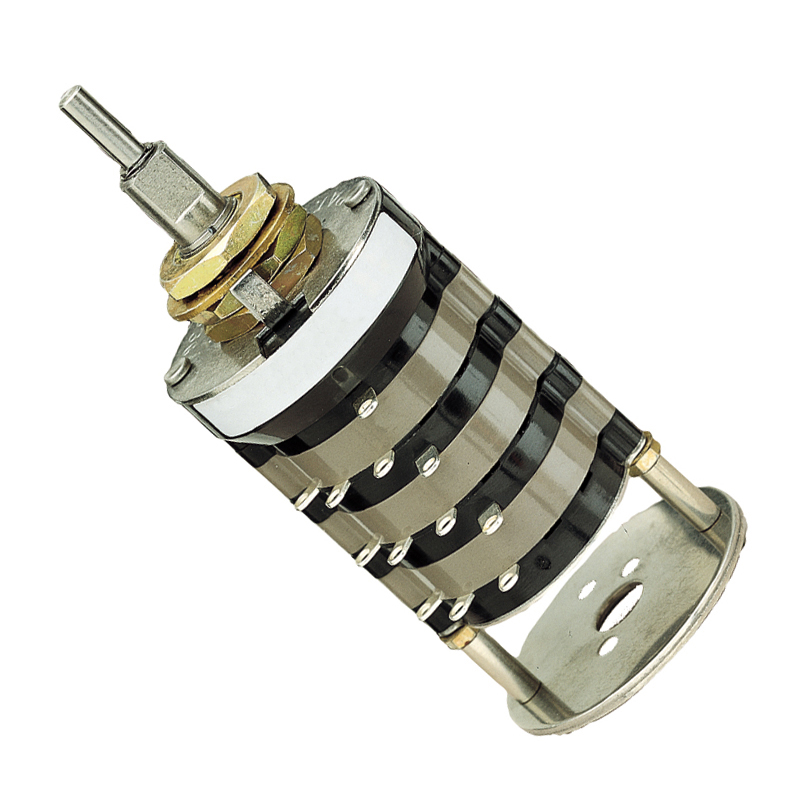

54M30-03-2-06N

  • Central shaft designed to operate an add-on potentiometer
  • Potentiometer mounting plates provided
  • Adjustable stop standard, fixed stop by order
  • MIL Qualified: MIL-S-3786/4
  • Add-A-Pot
  • Poles: up to 2
  • Decks: up to 3
  • Angle of Throw: 30, 36
  • Positions: 10, 12
  • Rating (max): 1 Amp
  • Depth Behind Panel: 0.97"" to 1.72
Link copied to clipboard. Request Quote
  • Technical Data
  • Description

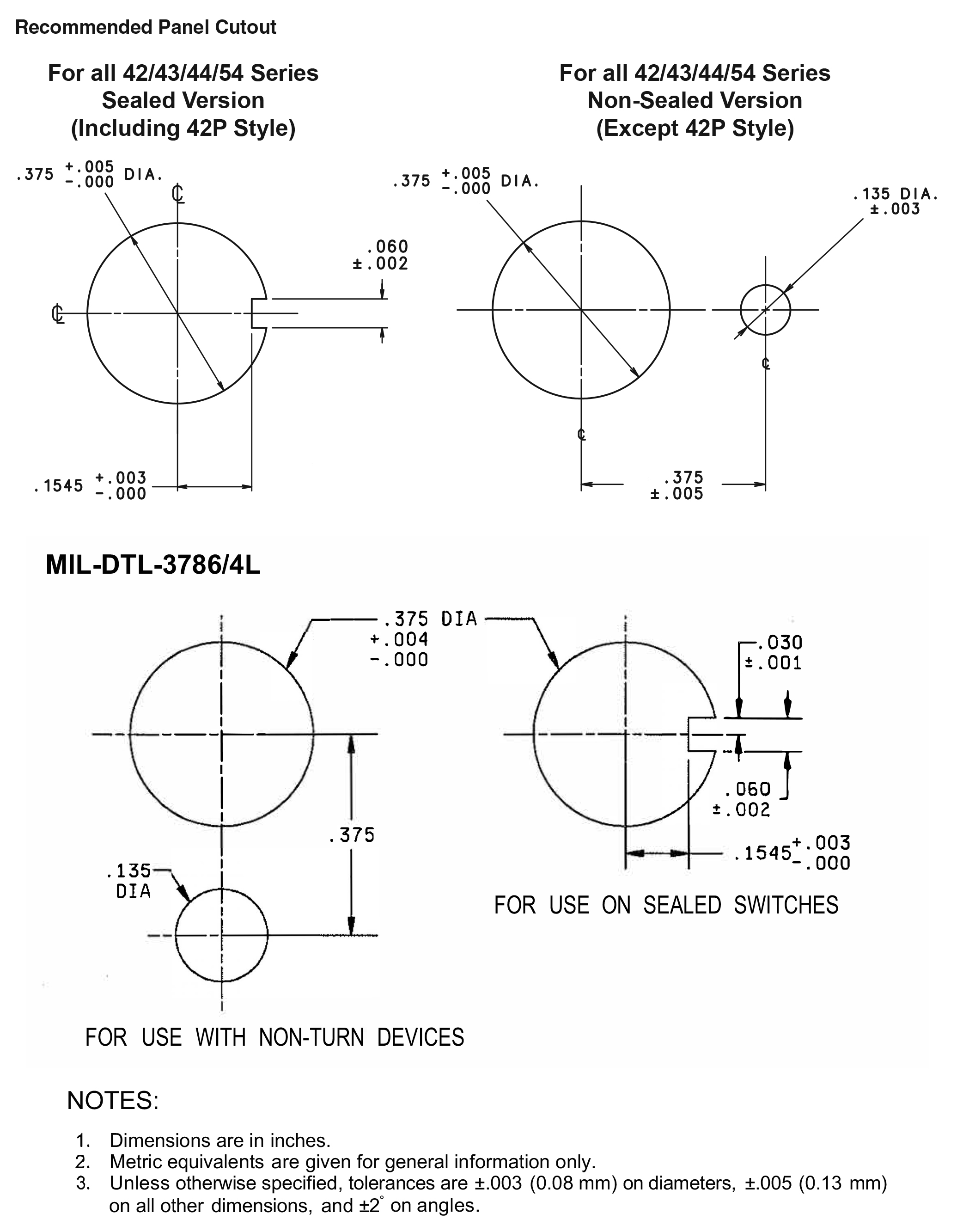

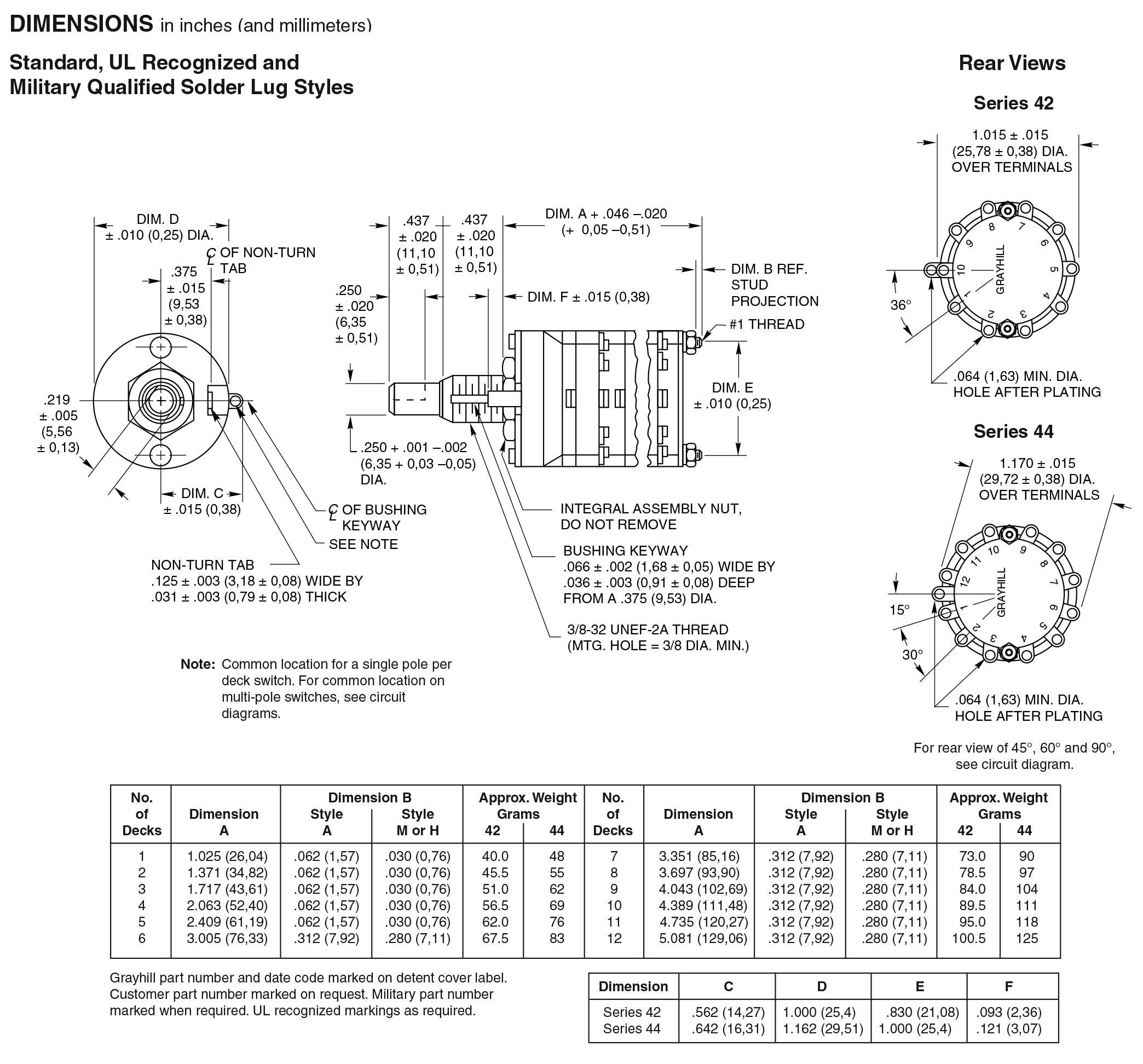

  • Drawings
  • Downloads
  • Where to Buy
  • 3D Model AvailableNo
  • Angle of Throw (°)30
  • Behind Panel (in)1.716
  • Contact TypeNon-Shorting
  • Fixed StopContinuous
  • Maximum Switch Rating1 Amp
  • Mechanical Life Cycles25,000
  • Military RatedYes
  • Number of Decks03/ADD A POT
  • Number of Poles2/ N/A
  • Ordering Part Number54M30-03-2-06N
  • OutputConcentric Rotary
  • Positions per Pole06/ N/A
  • Process SealNo
  • RoHS CompliantYes
  • Shaft & Panel SealNo
  • Shaft Diamter (in)0.25/0.125
  • Shaft StyleShaft
  • Stop Strength15 lbf in
  • TerminationSolder Lug
  • UL RatedNo
  • Central shaft designed to operate an add-on potentiometer
  • Potentiometer mounting plates provided
  • Adjustable stop standard, fixed stop by order
  • MIL Qualified: MIL-S-3786/4
  • Add-A-Pot
  • Poles: up to 2
  • Decks: up to 3
  • Angle of Throw: 30, 36
  • Positions: 10, 12
  • Rating (max): 1 Amp
  • Depth Behind Panel: 0.97"" to 1.72
