Series: 3D2104
- Ideal for gauges, diagnostic menus and other vehicle functions
- Capable of displaying three simultaneous video feeds
- Sealed to IP67
- J1939 compliant CAN interfaces.
Link copied to clipboard.
Request Quote
- Products
- Description

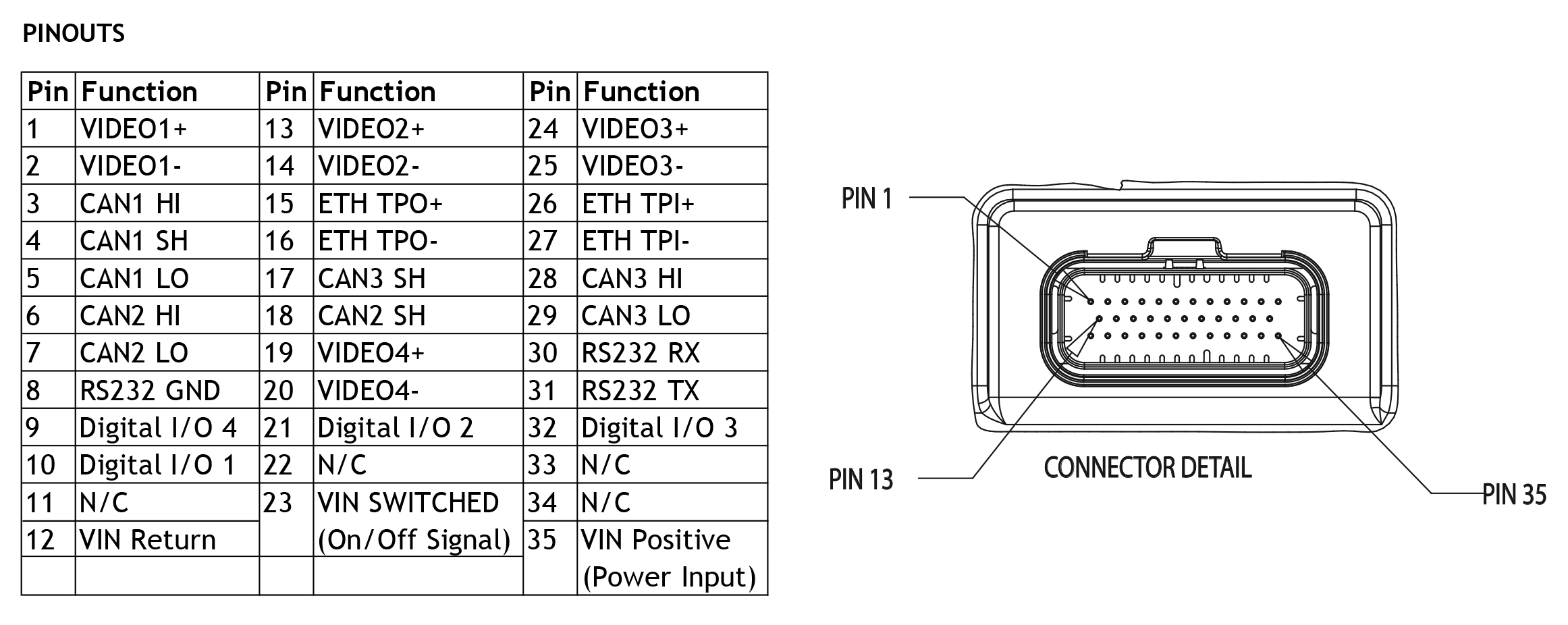

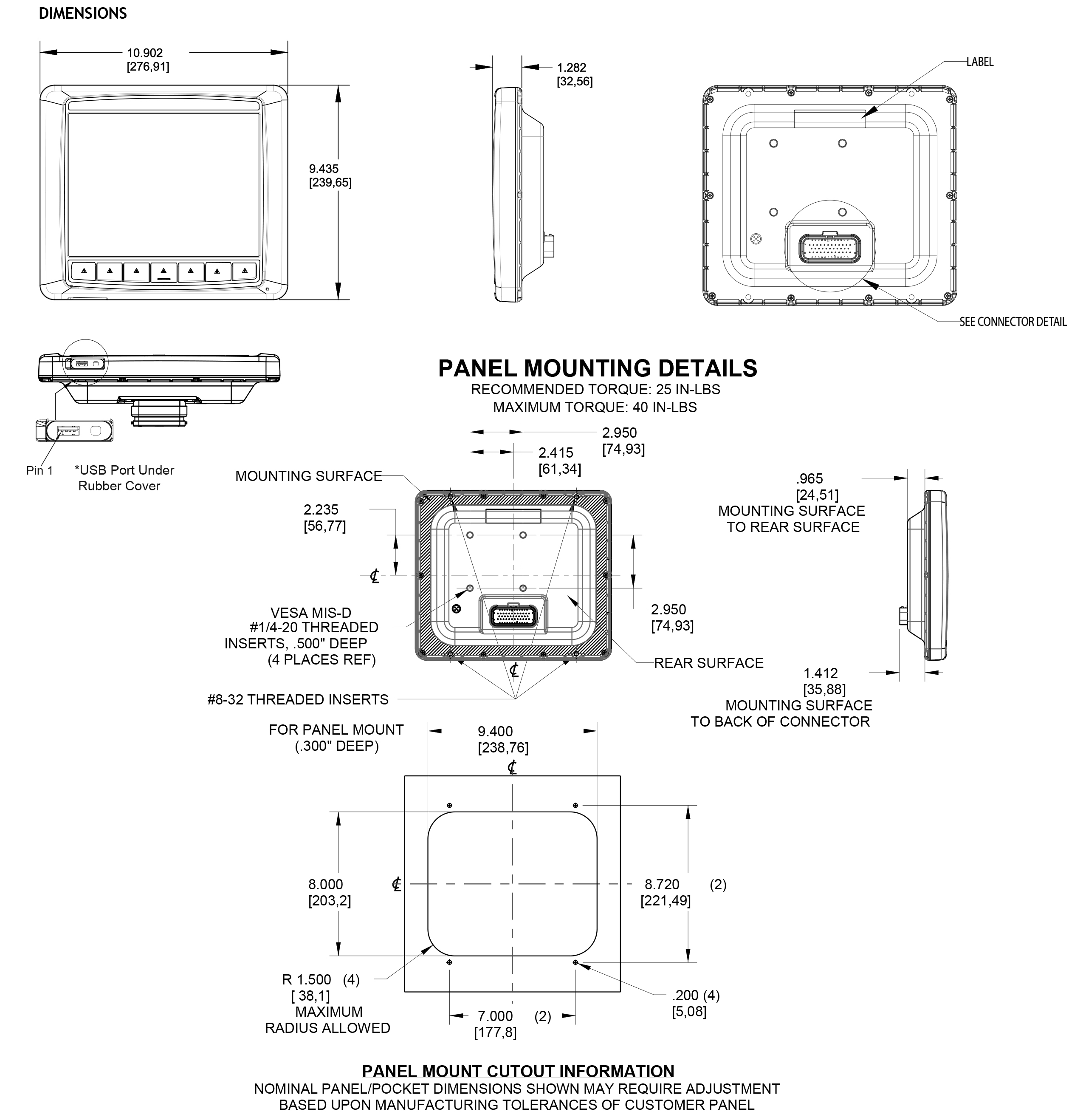

- Drawings
- Downloads
| Product | Display Size | Touchscreen | Operating System | Number of Video Inputs |
|---|---|---|---|---|
|
10.4-inch CAN Bus Display
3D2104DEV-100
|
10.4” | Yes | Linux 3.0.35 | 4 |
|
10.4-inch CAN Bus Display
3D2104DEV-200
|
10.4” | Yes | Linux 4.1.15 | 4 |
|
10.4-inch CAN Bus Display
3D2104TK-100
|
10.4” | Yes | Linux 3.0.35 | 4 |
|
10.4-inch CAN Bus Display
3D2104TK-200
|
10.4” | Yes | Linux 4.1.15 | 4 |
|
10.4-inch CAN Bus Display
3D2104XK-100
|
10.4” | No | Linux 3.0.35 | 4 |
|
10.4-inch CAN Bus Display
3D2104XK-200
|
10.4” | No | Linux 4.1.15 | 4 |
- Ideal for gauges, diagnostic menus and other vehicle functions
- Capable of displaying three simultaneous video feeds
- Sealed to IP67
- J1939 compliant CAN interfaces.
- Ideal for gauges, diagnostic menus and other vehicle functions
- Capable of displaying three simultaneous video feeds
- Sealed to IP67
- J1939 compliant CAN interfaces.
Products
|
|
10.4-inch CAN Bus Display
3D2104DEV-100
Display Size: 10.4” Touchscreen: Yes Operating System: Linux 3.0.35 Number of Video Inputs: 4 |
|
|
10.4-inch CAN Bus Display
3D2104DEV-200
Display Size: 10.4” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 4 |
|
|
10.4-inch CAN Bus Display
3D2104TK-100
Display Size: 10.4” Touchscreen: Yes Operating System: Linux 3.0.35 Number of Video Inputs: 4 |
|
|
10.4-inch CAN Bus Display
3D2104TK-200
Display Size: 10.4” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 4 |
|
|
10.4-inch CAN Bus Display
3D2104XK-100
Display Size: 10.4” Touchscreen: No Operating System: Linux 3.0.35 Number of Video Inputs: 4 |
|
|
10.4-inch CAN Bus Display
3D2104XK-200
Display Size: 10.4” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 4 |
