Series: 3D70
The Grayhill 3D70 7-Inch CAN Bus Display is a rugged, sunlight-readable interface designed for off-highway, agriculture, and construction vehicles. Its bright 1000-nit WVGA LCD with optically bonded, anti-glare glass ensures excellent visibility in direct sunlight, while the glove- and wet-compatible PCAP touchscreen allows operators to reliably swipe, select, and control functions in any condition.
Powered by an 800 MHz processor with 512 MB RAM and 4 GB storage, the 3D70 supports fast boot times, simultaneous monitoring, and up to three video inputs. Integration is flexible with up to two CAN bus ports, RS232, Ethernet, audio out, two analog inputs, four digital inputs, and four digital outputs. Sealed to IP67 standards with a scratch-resistant glass cover, the 3D70 withstands dust, water, vibration, and shock.
Applications can be developed quickly in Grayhill’s VUI Builder (J1939) or programmed with Qt and CODESYS, making the display ideal for virtual gauges, diagnostics, engine monitoring, and advanced operator control.
- Products
- Description

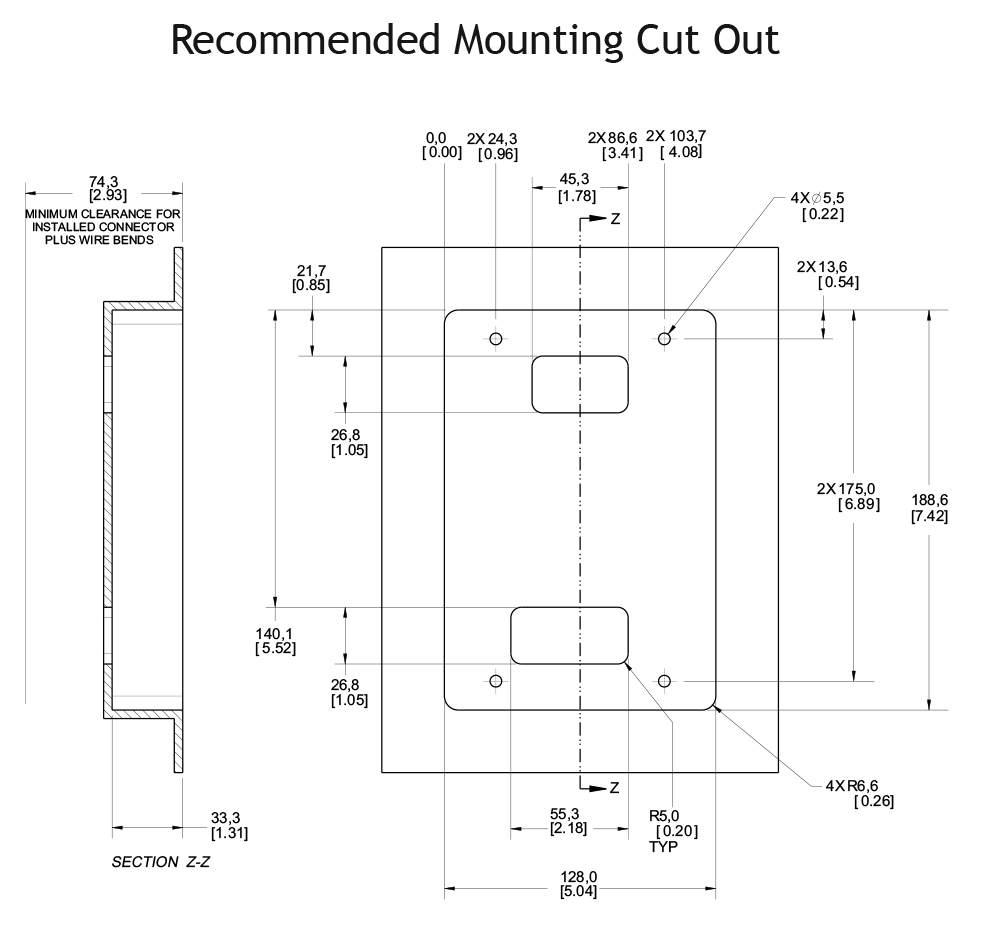

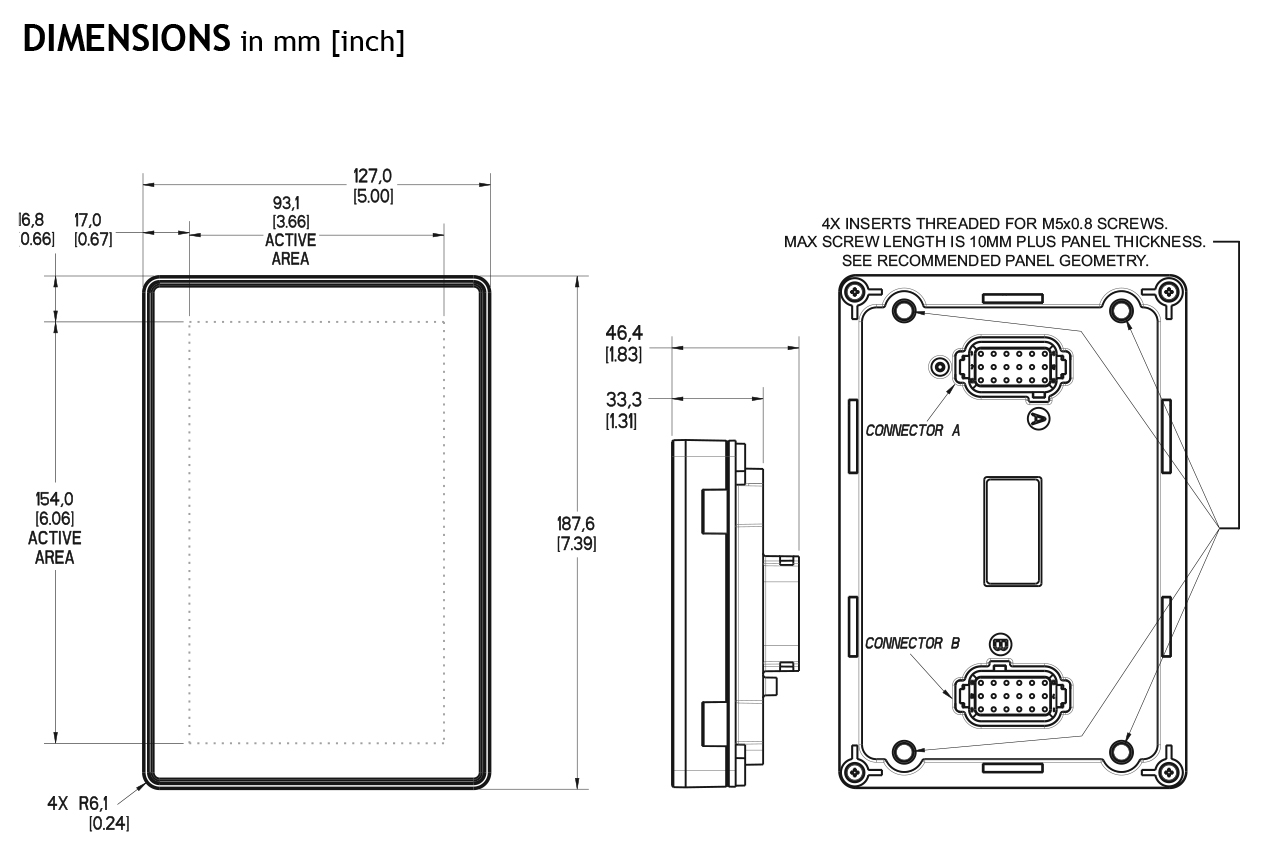

- Drawings
- Downloads
| Product | Display Size | Touchscreen | Operating System | Number of Video Inputs |
|---|---|---|---|---|
|
7-inch CAN Bus Display
3D70DEV-200
|
7” | Yes | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70DEV-200-C
|
7” | Yes | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70DEV-300
|
7” | Yes | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70DEV-300-C
|
7” | Yes | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70VT-200
|
7” | Yes | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70VT-200-C
|
7” | Yes | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70VT-300
|
7” | Yes | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70VT-300-C
|
7” | Yes | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70VX-200
|
7” | No | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70VX-200-C
|
7” | No | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70VX-300
|
7” | No | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70VX-300-C
|
7” | No | Linux 4.1.15 | 3 |
|
7-inch CAN Bus Display
3D70XX-200
|
7” | No | Linux 4.1.15 | 0 |
|
7-inch CAN Bus Display
3D70XX-200-C
|
7” | No | Linux 4.1.15 | 0 |
|
7-inch CAN Bus Display
3D70XX-300
|
7” | No | Linux 4.1.15 | 0 |
|
7-inch CAN Bus Display
3D70XX-300-C
|
7” | No | Linux 4.1.15 | 0 |
- Intuitive touch technology to select objects and swipe through screens
- Easy application creation and integration with VUI Builder (J1939), Qt, or optional CODESYS
- Up to 3 Video inputs and 2 CANbus inputs
- Powerful processor with 3 second boot time (VUI Builder)
- Scratch resistant/anti-glare cover glass is optically bonded to LCD display for superior mechanical and visual performance
- Bright, 1000-nit display is backlit, and provides high contrast text and full color graphics for excellent sunlight readability
- Intuitive touch technology to select objects and swipe through screens
- Easy application creation and integration with VUI Builder (J1939), Qt, or optional CODESYS
- Up to 3 Video inputs and 2 CANbus inputs
- Powerful processor with 3 second boot time (VUI Builder)
- Scratch resistant/anti-glare cover glass is optically bonded to LCD display for superior mechanical and visual performance
- Bright, 1000-nit display is backlit, and provides high contrast text and full color graphics for excellent sunlight readability
|
|
7-inch CAN Bus Display
3D70DEV-200
Display Size: 7” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70DEV-200-C
Display Size: 7” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70DEV-300
Display Size: 7” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70DEV-300-C
Display Size: 7” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70VT-200
Display Size: 7” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70VT-200-C
Display Size: 7” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70VT-300
Display Size: 7” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70VT-300-C
Display Size: 7” Touchscreen: Yes Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70VX-200
Display Size: 7” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70VX-200-C
Display Size: 7” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70VX-300
Display Size: 7” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70VX-300-C
Display Size: 7” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 3 |
|
|
7-inch CAN Bus Display
3D70XX-200
Display Size: 7” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 0 |
|
|
7-inch CAN Bus Display
3D70XX-200-C
Display Size: 7” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 0 |
|
|
7-inch CAN Bus Display
3D70XX-300
Display Size: 7” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 0 |
|
|
7-inch CAN Bus Display
3D70XX-300-C
Display Size: 7” Touchscreen: No Operating System: Linux 4.1.15 Number of Video Inputs: 0 |
