Series: 3JG1

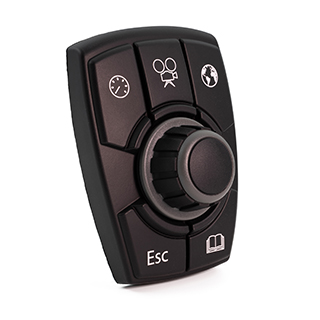

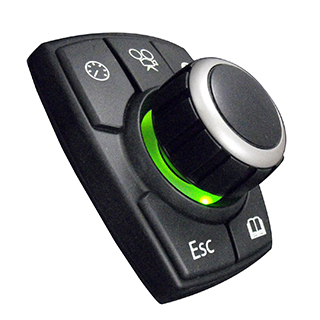

Grayhill’s 3JG1 CAN Bus Vehicle Interface Controllers combine rotary input, pushbutton selection, and joystick navigation into a compact, rugged interface designed for off-highway and heavy-duty vehicles. Available in encoder-only, encoder with pushbutton, and joystick encoder modules, the 3JG1 supports both J1939 and CANopen protocols for flexible system integration.
With five hot keys, customizable LED legends, and support for multi-key inputs, our Vehicle Interface Controller puts critical display functions within easy reach of the operator. Engineered for 12V and 24V systems, it is sealed to IP67 and tested to withstand extreme environments including vibration, impact, and wide temperature fluctuations.
A long life of 500,000 cycles and optional custom legends make this controller ideal for OEMs seeking reliable, user-friendly interface solutions.
- Products
- Description

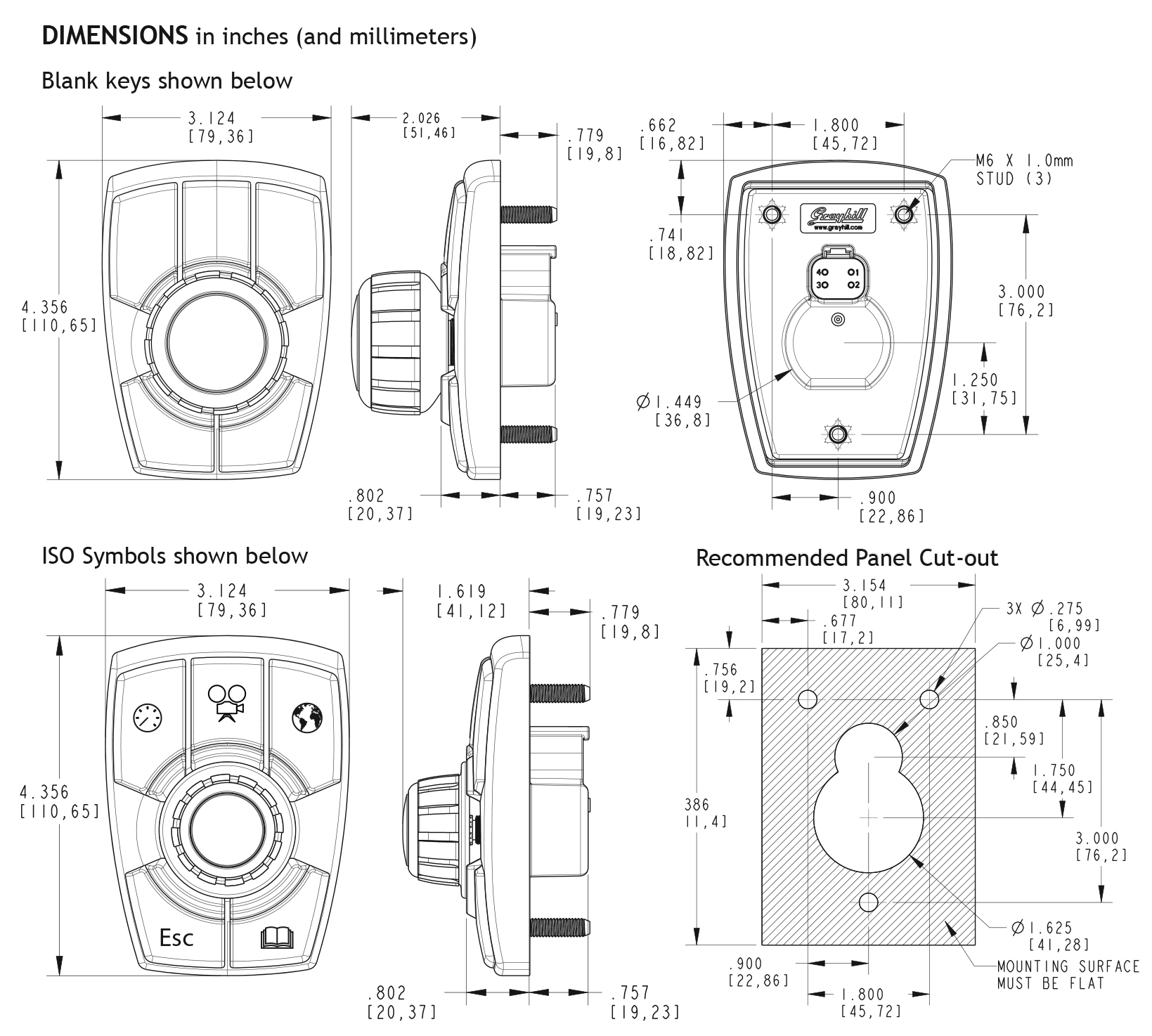

- Drawings
- Downloads
Product | CAN Bus Protocol | Rotary Interface Type | # of Keypad Buttons | Backlight Color |
---|---|---|---|---|
![]()
CAN Bus Vehicle Interface Controller
3J0005-200
|
J1939 | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J0005-200N
|
CANopen | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J0015-200
|
J1939 | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J0015-200N
|
CANopen | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J0115-200
|
J1939 | Joystick Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J0115-200N
|
CANopen | Joystick Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J1005-200
|
J1939 | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J1005-200N
|
CANopen | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J1015-200
|
J1939 | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J1015-200N
|
CANopen | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J1115-200
|
J1939 | Joystick Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J1115-200N
|
CANopen | Joystick Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J2005-200
|
J1939 | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J2005-200N
|
CANopen | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J2015-200
|
J1939 | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J2015-200N
|
CANopen | Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J2115-200
|
J1939 | Joystick Encoder | 5 | Green |
![]()
CAN Bus Vehicle Interface Controller
3J2115-200N
|
CANopen | Joystick Encoder | 5 | Green |
- Keypad buttons: 5
- Long life cycle: 1M for encoder and pushbutton, 500K for joystick
- J1939 and CANopen versions
- Dimmable LED indicators and legends
- Sealed to IP67
- Vibration and impact resistant
- Keypad buttons: 5
- Long life cycle: 1M for encoder and pushbutton, 500K for joystick
- J1939 and CANopen versions
- Dimmable LED indicators and legends
- Sealed to IP67
- Vibration and impact resistant
![]() |
CAN Bus Vehicle Interface Controller
3J0005-200
CAN Bus Protocol: J1939 Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J0005-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J0015-200
CAN Bus Protocol: J1939 Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J0015-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J0115-200
CAN Bus Protocol: J1939 Rotary Interface Type: Joystick Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J0115-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Joystick Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J1005-200
CAN Bus Protocol: J1939 Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J1005-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J1015-200
CAN Bus Protocol: J1939 Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J1015-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J1115-200
CAN Bus Protocol: J1939 Rotary Interface Type: Joystick Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J1115-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Joystick Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J2005-200
CAN Bus Protocol: J1939 Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J2005-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J2015-200
CAN Bus Protocol: J1939 Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J2015-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J2115-200
CAN Bus Protocol: J1939 Rotary Interface Type: Joystick Encoder # of Keypad Buttons: 5 Backlight Color: Green |
![]() |
CAN Bus Vehicle Interface Controller
3J2115-200N
CAN Bus Protocol: CANopen Rotary Interface Type: Joystick Encoder # of Keypad Buttons: 5 Backlight Color: Green |
