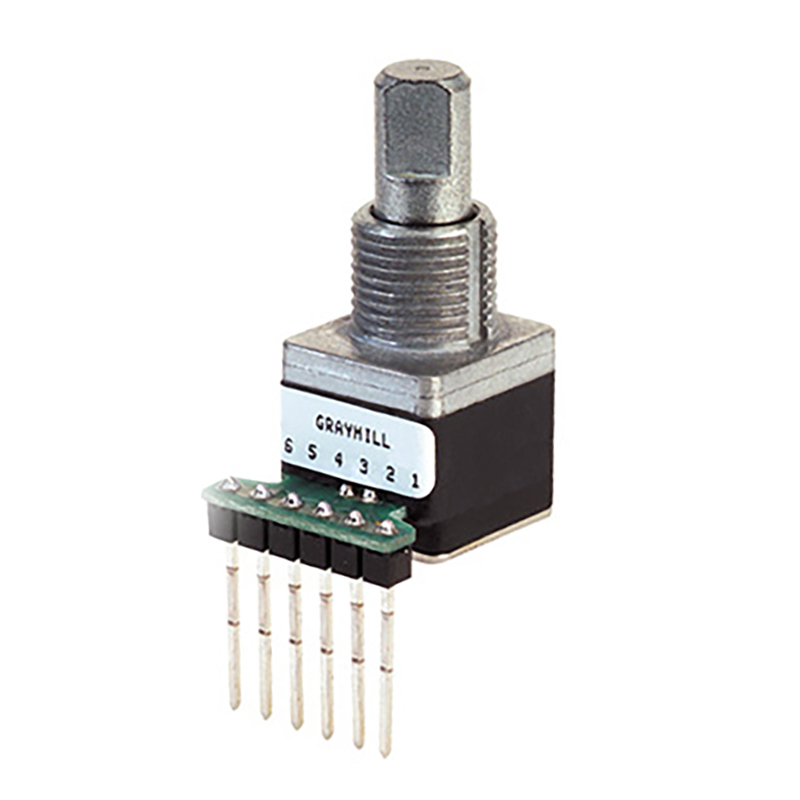

Series: 62A-D-V
- D = high detent, V = 3.3 Vdc
- Life Rating (cycles): 1,000,000
- Resolution (PPR): 12, 16, 20, 24, 32

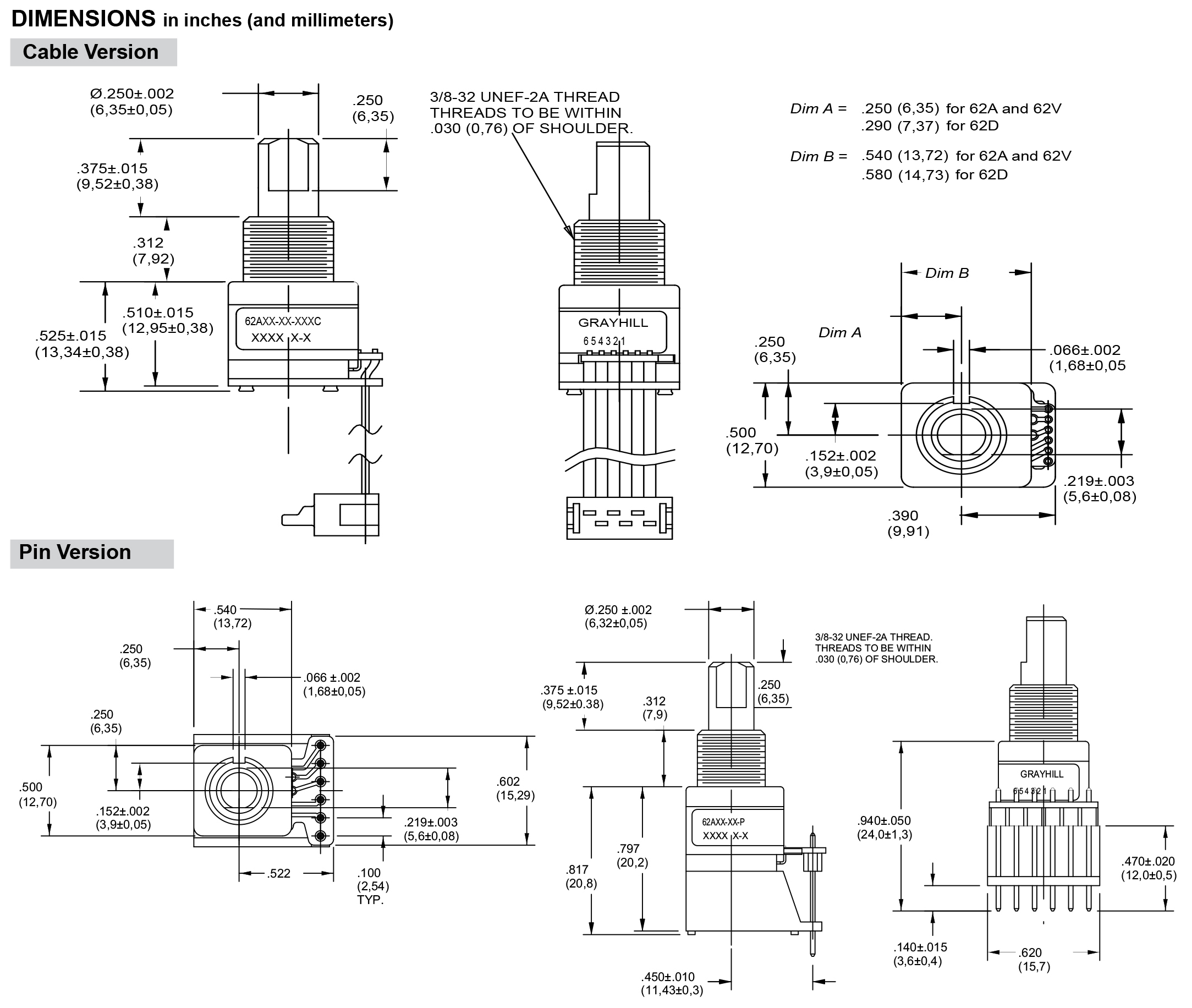

- Body Size inches [mm]: .500 x.540 [12,70 x 13,71]
- Depth Behind Panel inch [mm]: .525 [13,33]
Link copied to clipboard.
Request Quote
- Products
- Description
- Drawings
- Downloads
Product | Output | Angle of Throw: Deck A | Angle of Throw: Deck B | Supply Voltage (VDC) |
---|---|---|---|---|
![]()
Premium Haptic Rotary Encoder
62A01-01-020C
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-020S
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-020SH
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-040C
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-040S
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-050CH
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-050S
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-060C
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-060S
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-060SH
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-200S
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-01-P
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-02-020S
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-02-030C
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-02-030S
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-02-040CH
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-02-040S
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-02-040SH
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-02-050C
|
11.25 | N/A | 5 | 0.25 |
![]()
Premium Haptic Rotary Encoder
62A01-02-050CH
|
11.25 | N/A | 5 | 0.25 |
- D = high detent, V = 3.3 Vdc
- Life Rating (cycles): 1,000,000
- Resolution (PPR): 12, 16, 20, 24, 32
- Body Size inches [mm]: .500 x.540 [12,70 x 13,71]
- Depth Behind Panel inch [mm]: .525 [13,33]
Products
![]() |
Premium Haptic Rotary Encoder
62A01-01-020C
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-020S
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-020SH
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-040C
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-040S
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-050CH
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-050S
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-060C
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-060S
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-060SH
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-200S
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-01-P
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-02-020S
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-02-030C
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-02-030S
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-02-040CH
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-02-040S
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-02-040SH
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-02-050C
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
![]() |
Premium Haptic Rotary Encoder
62A01-02-050CH
Output: 11.25 Angle of Throw: Deck A: N/A Angle of Throw: Deck B: 5 Supply Voltage (VDC): 0.25 |
