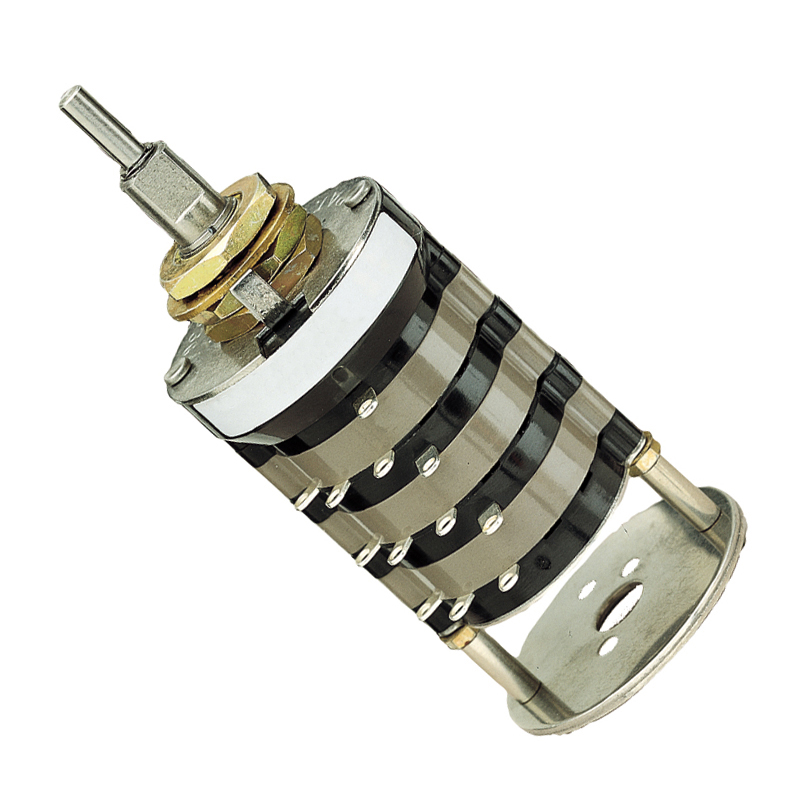

Series: 43-54-D-UD-M

Central shaft designed to operate an add-on potentiometer
Potentiometer mounting plates provided
Adjustable stop standard, fixed stop by order
MIL Qualified: MIL-S-3786/4
Add-A-Pot
Poles: up to 2
Decks: up to 3
Angle of Throw: 30, 36
Positions: 10, 12
Rating (max): 1 Amp
Depth Behind Panel: 0.97"" to 1.72

Products
Description

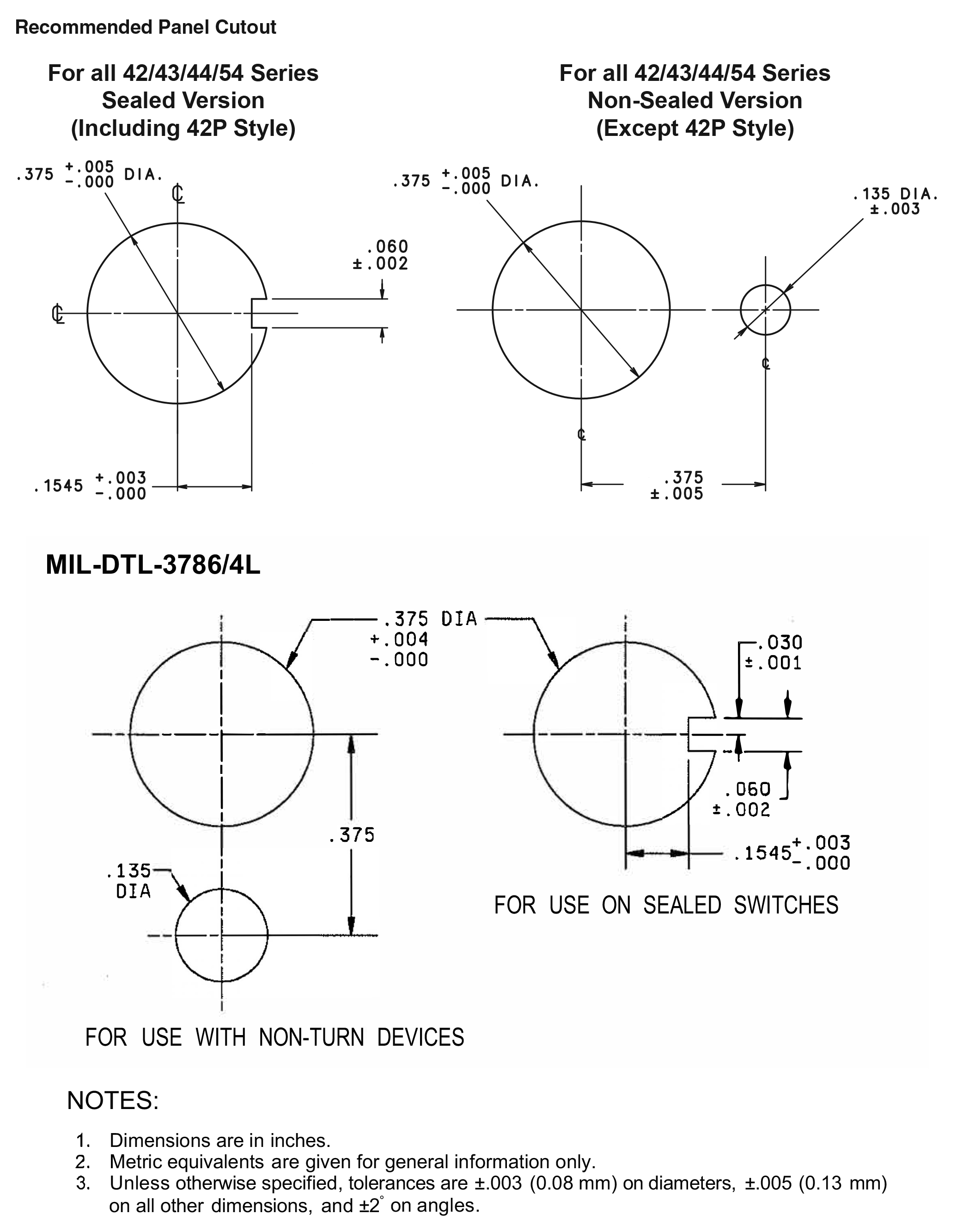

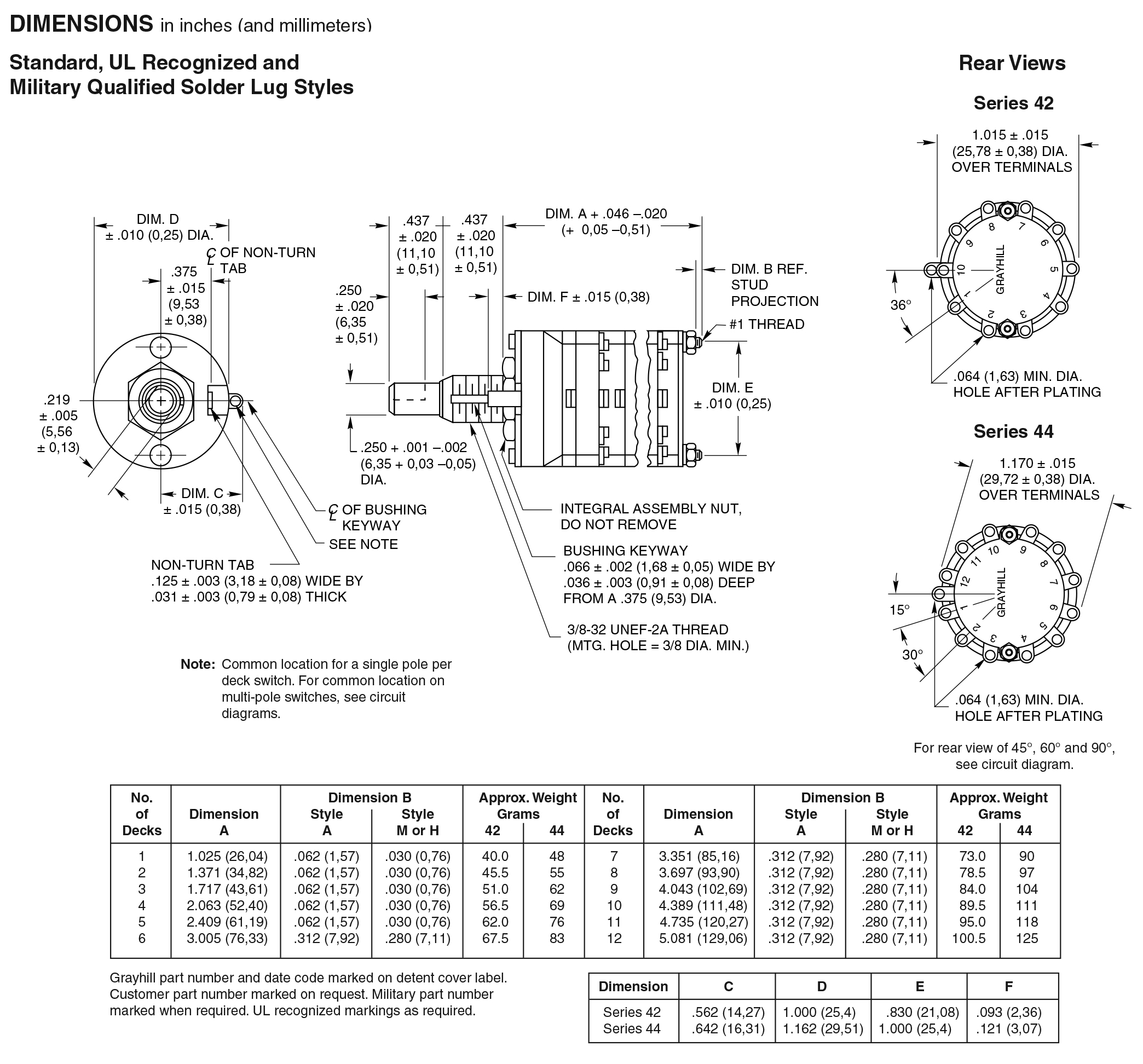

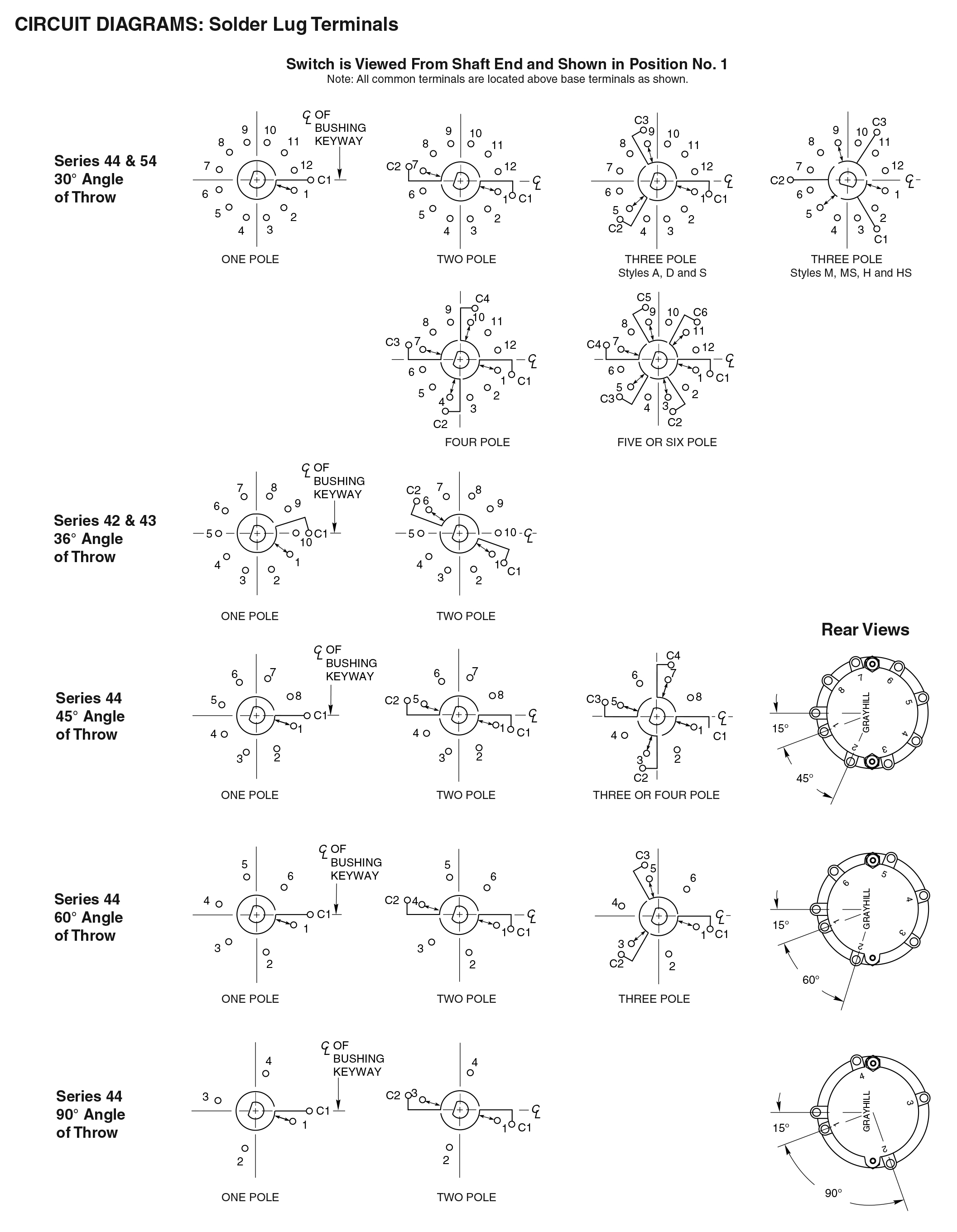

Drawings
Downloads

Product	Output	Angle of Throw (°)	Positions per Pole	Number of Decks
Multi-Deck Rotary Switch 43D36-01-1-AJN	36	ADJ/N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 43D36-01-1-AJS	36	ADJ/N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 43D36-02-1-AJN	36	ADJ/N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 43D36-02-1-AJS	36	ADJ/N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 43D36-03-1-AJN	36	ADJ/N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 43UD36-01-1-AJN	36	ADJ/N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54D30-01-1-AJN	30	10/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54D30-01-1-AJS	30	10/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54D30-01-2-AJN	30	10/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54D30-01-2-AJS	30	10/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54D30-02-1-AJN	30	10/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54D30-02-1-AJS	30	10/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54D30-02-2-AJN	30	10/ N/A	02/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54D30-02-2-AJS	30	10/ N/A	02/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54D30-03-1-AJN	30	10/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54D30-03-1-AJS	30	10/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54D30-03-2-AJN	30	10/ N/A	03/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-01-1-02N	30	02/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-03N	30	03/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-04N	30	04/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-04S	30	04/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-05N	30	05/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-05S	30	05/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-06N	30	06/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-09N	30	09/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-09S	30	09/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-10N	30	10/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-10S	30	10/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-11N	30	11/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-12N	30	12/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-12N-F	30	12/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-1-12S	30	12/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-01-2-02N	30	02/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-01-2-02S	30	02/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-01-2-03N	30	03/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-01-2-04N	30	04/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-01-2-04S	30	04/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-01-2-05N	30	05/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-01-2-06N	30	06/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-01-2-06S	30	06/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-02-1-02N	30	02/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-1-03N	30	03/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-1-05N	30	05/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-1-05S	30	05/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-1-06N	30	06/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-1-09S	30	09/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-1-10N	30	10/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-1-12N	30	12/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-1-12N-F	30	12/ N/A	02/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-02-2-02N	30	02/ N/A	02/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-02-2-03N	30	03/ N/A	02/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-02-2-05N	30	05/ N/A	02/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-02-2-06N	30	06/ N/A	02/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-02-2-06S	30	06/ N/A	02/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-03-1-03N	30	03/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-1-04N	30	04/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-1-05N	30	05/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-1-05S	30	05/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-1-06N	30	06/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-1-08N	30	08/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-1-11N	30	11/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-1-12N	30	12/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-1-12S	30	12/ N/A	03/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54M30-03-2-03S	30	03/ N/A	03/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-03-2-04N	30	04/ N/A	03/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-03-2-05N	30	05/ N/A	03/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54M30-03-2-06N	30	06/ N/A	03/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54UD30-01-1-AJN	30	10/ N/A	01/ADD A POT	1/ N/A
Multi-Deck Rotary Switch 54UD30-01-2-AJN	30	10/ N/A	01/ADD A POT	2/ N/A
Multi-Deck Rotary Switch 54UD30-03-2-AJN	30	10/ N/A	03/ADD A POT	2/ N/A

Central shaft designed to operate an add-on potentiometer
Potentiometer mounting plates provided
Adjustable stop standard, fixed stop by order
MIL Qualified: MIL-S-3786/4
Add-A-Pot
Poles: up to 2
Decks: up to 3
Angle of Throw: 30, 36
Positions: 10, 12
Rating (max): 1 Amp
Depth Behind Panel: 0.97"" to 1.72

Central shaft designed to operate an add-on potentiometer
Potentiometer mounting plates provided
Adjustable stop standard, fixed stop by order
MIL Qualified: MIL-S-3786/4
Add-A-Pot
Poles: up to 2
Decks: up to 3
Angle of Throw: 30, 36
Positions: 10, 12
Rating (max): 1 Amp
Depth Behind Panel: 0.97"" to 1.72
