3D121DEV-100

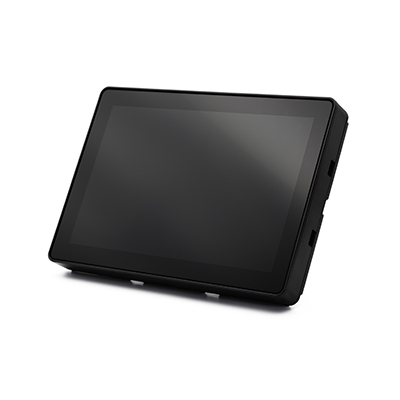

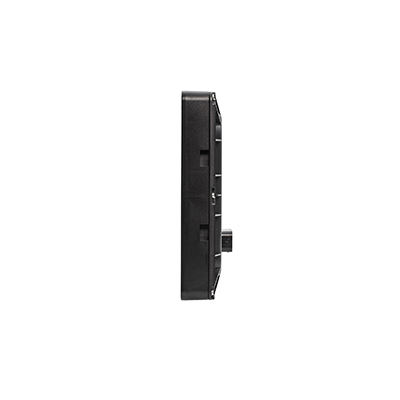

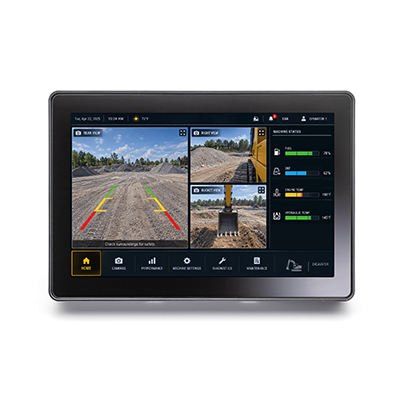

The GRAYHILL 3D121 12.1-inch CAN Bus Display gives off-highway OEMs more screen space, processing capability and integration flexibility for modern vehicle interfaces. Designed for gauges, diagnostics, cameras, guidance and other vehicle functions, the rugged display combines a bright 1000-nit, optically bonded WXGA display with CAN FD connectivity, a dual-core processor and four video inputs capable of displaying three camera views simultaneously.
With flexible mounting, optional touchscreen functionality and support for Linux Qt application development, the 3D121 provides a versatile HMI platform for agriculture, construction and other demanding off-highway vehicle applications.
Link copied to clipboard.
Request Quote
- Technical Data
- Description
- Drawings
- Downloads
- Where to Buy
- # of Digital I/O4
- 3D Model AvailableNo
- BuzzerYes
- Display Size12.1"
- Number of Analog Inputs0
- Number of Audio Outputs0
- Number of CAN Bus Interfaces3
- Number of Digital Inputs0
- Number of Digital Outputs0
- Number of Video Inputs4
- Operating SystemLinux 6.x
- RTCYes
- RoHS CompliantYes
- Supports EthernetYes
- Supports RS-232Yes
- Supports RS-485No
- Supports USB 2.0Yes
- TouchscreenYes
- 12.1-inch WXGA IPS display with 1280 × 800 resolution and 24-bit color
- 1000-nit LED backlight with wide viewing angle for demanding vehicle environments
- Optically bonded display for enhanced mechanical performance and sunlight readability
- Four video inputs, supporting NTSC/PAL and AHD, with three cameras viewable simultaneously
- 1.2 GHz STM32MP255 dual-core processor with 400 MHz Cortex-M33 real-time co-processor
- Three CAN bus ports with CAN FD capability
- Linux operating system with Linux Qt app development and integration
- IP67 sealed construction
- 8–32 VDC input for vehicle applications
USB, Ethernet, RS-232 and I/O connectivity, with optional 100BASE - T1 automotive Ethernet
- Optional touchscreen
- 5-second boot time
